#include <xetypes.h>

Include dependency graph for xe.h:

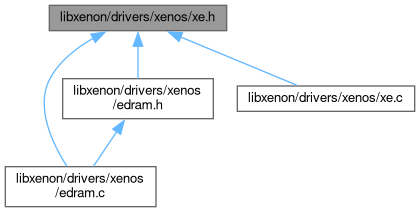

This graph shows which files directly or indirectly include this file:

Data Structures
struct	XenosLock

struct	XenosShader

struct	XenosShaderHeader

struct	XenosShaderData

struct	XenosShaderVertex

struct	XenosVBFElement

struct	XenosVBFFormat

struct	XenosSurface

struct	XenosVertexBuffer

struct	XenosIndexBuffer

struct	XenosDevice

Macros
#define	XE_MAX_INDICES_PER_DRAW 65535

#define	SHADER_TYPE_PIXEL 1

#define	SHADER_TYPE_VERTEX 0

#define	XE_PRIMTYPE_POINTLIST 1

#define	XE_PRIMTYPE_LINELIST 2

#define	XE_PRIMTYPE_LINESTRIP 3

#define	XE_PRIMTYPE_TRIANGLELIST 4

#define	XE_PRIMTYPE_TRIANGLEFAN 5

#define	XE_PRIMTYPE_TRIANGLESTRIP 6

#define	XE_PRIMTYPE_RECTLIST 8

#define	XE_PRIMTYPE_QUADLIST 13

#define	XE_CMP_NEVER 0

#define	XE_CMP_LESS 1

#define	XE_CMP_EQUAL 2

#define	XE_CMP_LESSEQUAL 3

#define	XE_CMP_GREATER 4

#define	XE_CMP_NOTEQUAL 5

#define	XE_CMP_GREATEREQUAL 6

#define	XE_CMP_ALWAYS 7

#define	XE_BLEND_ZERO 0

#define	XE_BLEND_ONE 1

#define	XE_BLEND_SRCCOLOR 4

#define	XE_BLEND_INVSRCCOLOR 5

#define	XE_BLEND_SRCALPHA 6

#define	XE_BLEND_INVSRCALPHA 7

#define	XE_BLEND_DESTCOLOR 8

#define	XE_BLEND_INVDESTCOLOR 9

#define	XE_BLEND_DESTALPHA 10

#define	XE_BLEND_INVDESTALPHA 11

#define	XE_BLEND_BLENDFACTOR 12

#define	XE_BLEND_INVBLENDFACTOR 13

#define	XE_BLEND_CONSTANTALPHA 14

#define	XE_BLEND_INVCONSTANTALPHA 15

#define	XE_BLEND_SRCALPHASAT 16

#define	XE_CULL_NONE 0

#define	XE_CULL_CW 2

#define	XE_CULL_CCW 6

#define	XE_BLENDOP_ADD 0

#define	XE_BLENDOP_SUBTRACT 1

#define	XE_BLENDOP_REVSUBTRACT 4

#define	XE_BLENDOP_MIN 2

#define	XE_BLENDOP_MAX 3

#define	XE_STENCILOP_KEEP 0

#define	XE_STENCILOP_ZERO 1

#define	XE_STENCILOP_REPLACE 2

#define	XE_STENCILOP_INCRSAT 3

#define	XE_STENCILOP_DECRSAT 4

#define	XE_STENCILOP_INVERT 5

#define	XE_STENCILOP_INCR 6

#define	XE_STENCILOP_DECR 7

#define	XE_TEXADDR_WRAP 0

#define	XE_TEXADDR_MIRROR 1

#define	XE_TEXADDR_CLAMP 2

#define	XE_TEXADDR_MIRRORONCE 3

#define	XE_TEXADDR_BORDER_HALF 4

#define	XE_TEXADDR_MIRRORONCE_BORDER_HALF 5

#define	XE_TEXADDR_BORDER 6

#define	XE_TEXADDR_MIRRORONCE_BORDER 7

#define	XE_CLIP_ENABLE_PLANE0 0x0001

#define	XE_CLIP_ENABLE_PLANE1 0x0002

#define	XE_CLIP_ENABLE_PLANE2 0x0004

#define	XE_CLIP_ENABLE_PLANE3 0x0008

#define	XE_CLIP_ENABLE_PLANE4 0x0010

#define	XE_CLIP_ENABLE_PLANE5 0x0020

#define	XE_CLIP_MASTER_DISABLE 0x10000

#define	XE_FILL_POINT 0x01

#define	XE_FILL_WIREFRAME 0x25

#define	XE_FILL_SOLID 0x00

#define	XE_SHADER_MAX_INSTANCES 16

#define	SWIZZLE_XYZW 0x688

#define	SWIZZLE_XYZ1 0xA88

#define	SWIZZLE_XY01 0xA08

#define	SWIZZLE_XY__ 0xFC8

#define	SWIZZLE_XYZ_ 0xEC8

#define	SWIZZLE_XYZ0 0x0C8

#define	SWIZZLE_XY0_ 0xE08

#define	XE_TYPE_FLOAT2 37

#define	XE_TYPE_FLOAT3 57

#define	XE_TYPE_FLOAT4 38

#define	XE_TYPE_UBYTE4 6

#define	XE_USAGE_POSITION 0

#define	XE_USAGE_BLENDWEIGHTS 1

#define	XE_USAGE_BLENDINDICES 2

#define	XE_USAGE_NORMAL 3

#define	XE_USAGE_PSIZE 4

#define	XE_USAGE_TEXCOORD 5

#define	XE_USAGE_TANGENT 6

#define	XE_USAGE_BINORMAL 7

#define	XE_USAGE_TESSFACTOR 8

#define	XE_USAGE_POSITIONT 9

#define	XE_USAGE_COLOR 10

#define	XE_USAGE_FOG 11

#define	XE_USAGE_DEPTH 12

#define	XE_USAGE_SAMPLE 13

#define	XE_FMT_MASK 0x3F

#define	XE_FMT_8 2

#define	XE_FMT_8888 6

#define	XE_FMT_5551 3

#define	XE_FMT_565 4

#define	XE_FMT_16161616 26

#define	XE_FMT_ARGB 0x80

#define	XE_FMT_BGRA 0x00

#define	XE_FMT_16BE 0x40

#define	XE_FMT_INDEX16 0

#define	XE_FMT_INDEX32 1

#define	DIRTY_ALU 0x0001

#define	DIRTY_FETCH 0x0002

#define	DIRTY_CLIP 0x0004

#define	DIRTY_INTEGER 0x0008

#define	DIRTY_CONTROL 0x0010

#define	DIRTY_SHADER 0x0020

#define	DIRTY_MISC 0x0040

#define	XE_SOURCE_COLOR 0

#define	XE_SOURCE_DS 4

#define	XE_CLEAR_COLOR 1

#define	XE_CLEAR_DS 2

#define	XE_LOCK_READ 1

#define	XE_LOCK_WRITE 2

Functions
void	Xe_Init (struct XenosDevice *xe)

void	__attribute__ ((noreturn)) Xe_Fatal(struct XenosDevice *xe

void const char void	Xe_SetRenderTarget (struct XenosDevice xe, struct XenosSurface rt)

void	Xe_Resolve (struct XenosDevice *xe)

void	Xe_ResolveInto (struct XenosDevice xe, struct XenosSurface surface, int source, int clear)

void	Xe_Clear (struct XenosDevice *xe, int flags)

struct XenosSurface *	Xe_GetFramebufferSurface (struct XenosDevice *xe)

void	Xe_SetFrameBufferSurface (struct XenosDevice xe, struct XenosSurface fb)

void	Xe_Execute (struct XenosDevice *xe)

void	Xe_Sync (struct XenosDevice *xe)

void	Xe_SetClearColor (struct XenosDevice *xe, u32 clearcolor)

void	Xe_DirtyAluConstant (struct XenosDevice *xe, int base, int len)

void	Xe_DirtyFetch (struct XenosDevice *xe, int base, int len)

struct XenosShader *	Xe_LoadShader (struct XenosDevice xe, const char filename)

struct XenosShader *	Xe_LoadShaderFromMemory (struct XenosDevice xe, void shader)

void	Xe_InstantiateShader (struct XenosDevice xe, struct XenosShader sh, unsigned int index)

int	Xe_GetShaderLength (struct XenosDevice xe, void sh)

void	Xe_ShaderApplyVFetchPatches (struct XenosDevice xe, struct XenosShader sh, unsigned int index, const struct XenosVBFFormat *fmt)

int	Xe_VBFCalcStride (struct XenosDevice xe, const struct XenosVBFFormat fmt)

int	Xe_VBFCalcSize (struct XenosDevice xe, const struct XenosVBFElement fmt)

void	Xe_SetZFunc (struct XenosDevice *xe, int z_func)

void	Xe_SetZWrite (struct XenosDevice *xe, int zw)

void	Xe_SetZEnable (struct XenosDevice *xe, int zw)

void	Xe_SetFillMode (struct XenosDevice *xe, int front, int back)

void	Xe_SetBlendControl (struct XenosDevice *xe, int col_src, int col_op, int col_dst, int alpha_src, int alpha_op, int alpha_dst)

void	Xe_SetSrcBlend (struct XenosDevice *xe, unsigned int blend)

void	Xe_SetDestBlend (struct XenosDevice *xe, unsigned int blend)

void	Xe_SetBlendOp (struct XenosDevice *xe, unsigned int blendop)

void	Xe_SetSrcBlendAlpha (struct XenosDevice *xe, unsigned int blend)

void	Xe_SetDestBlendAlpha (struct XenosDevice *xe, unsigned int blend)

void	Xe_SetBlendOpAlpha (struct XenosDevice *xe, unsigned int blendop)

void	Xe_SetCullMode (struct XenosDevice *xe, unsigned int cullmode)

void	Xe_SetAlphaTestEnable (struct XenosDevice *xe, int enable)

void	Xe_SetAlphaFunc (struct XenosDevice *xe, unsigned int func)

void	Xe_SetAlphaRef (struct XenosDevice *xe, float alpharef)

void	Xe_SetScissor (struct XenosDevice *xe, int enable, int left, int top, int right, int bottom)

void	Xe_SetStencilEnable (struct XenosDevice *xe, unsigned int enable)

void	Xe_SetStencilFunc (struct XenosDevice *xe, int bfff, unsigned int func)

void	Xe_SetStencilOp (struct XenosDevice *xe, int bfff, int fail, int zfail, int pass)

void	Xe_SetStencilRef (struct XenosDevice *xe, int bfff, int ref)

void	Xe_SetStencilMask (struct XenosDevice *xe, int bfff, int mask)

void	Xe_SetStencilWriteMask (struct XenosDevice *xe, int bfff, int writemask)

void	Xe_SetClipPlaneEnables (struct XenosDevice *xe, int enables)

void	Xe_SetClipPlane (struct XenosDevice xe, int idx, float plane)

void	Xe_InvalidateState (struct XenosDevice *xe)

void	Xe_SetShader (struct XenosDevice xe, int type, struct XenosShader sh, int instance)

void	Xe_SetTexture (struct XenosDevice xe, int index, struct XenosSurface tex)

struct XenosVertexBuffer *	Xe_VBPoolAlloc (struct XenosDevice *xe, int size)

void	Xe_VBPoolAdd (struct XenosDevice xe, struct XenosVertexBuffer vb)

void	Xe_VBReclaim (struct XenosDevice *xe)

void	Xe_VBBegin (struct XenosDevice *xe, int pitch)

void	Xe_VBPut (struct XenosDevice xe, void data, int len)

struct XenosVertexBuffer *	Xe_VBEnd (struct XenosDevice *xe)

void	Xe_Draw (struct XenosDevice xe, struct XenosVertexBuffer vb, struct XenosIndexBuffer *ib)

void	Xe_SetIndices (struct XenosDevice de, struct XenosIndexBuffer ib)

void	Xe_DrawIndexedPrimitive (struct XenosDevice *xe, int type, int base_index, int min_index, int num_vertices, int start_index, int primitive_count)

void	Xe_DrawPrimitive (struct XenosDevice *xe, int type, int start, int primitive_count)

void	Xe_SetStreamSource (struct XenosDevice xe, int index, struct XenosVertexBuffer vb, int offset, int stride)

struct XenosIndexBuffer *	Xe_CreateIndexBuffer (struct XenosDevice *xe, int length, int format)

void	Xe_DestroyIndexBuffer (struct XenosDevice xe, struct XenosIndexBuffer ib)

struct XenosVertexBuffer *	Xe_CreateVertexBuffer (struct XenosDevice *xe, int length)

void	Xe_DestroyVertexBuffer (struct XenosDevice xe, struct XenosVertexBuffer vb)

void *	Xe_VB_Lock (struct XenosDevice xe, struct XenosVertexBuffer vb, int offset, int size, int flags)

void	Xe_VB_Unlock (struct XenosDevice xe, struct XenosVertexBuffer vb)

void *	Xe_IB_Lock (struct XenosDevice xe, struct XenosIndexBuffer ib, int offset, int size, int flags)

void	Xe_IB_Unlock (struct XenosDevice xe, struct XenosIndexBuffer ib)

void	Xe_SetVertexShaderConstantF (struct XenosDevice xe, int start, const float data, int count)

void	Xe_SetPixelShaderConstantF (struct XenosDevice xe, int start, const float data, int count)

void	Xe_SetVertexShaderConstantB (struct XenosDevice *xe, int index, int value)

void	Xe_SetPixelShaderConstantB (struct XenosDevice *xe, int index, int value)

struct XenosSurface *	Xe_CreateTexture (struct XenosDevice *xe, unsigned int width, unsigned int height, unsigned int levels, int format, int tiled)

void	Xe_DestroyTexture (struct XenosDevice xe, struct XenosSurface surface)

void *	Xe_Surface_LockRect (struct XenosDevice xe, struct XenosSurface surface, int x, int y, int w, int h, int flags)

void	Xe_Surface_Unlock (struct XenosDevice xe, struct XenosSurface surface)

int	Xe_IsVBlank (struct XenosDevice *xe)

Variables
void const char *	fmt

Macro Definition Documentation

◆ DIRTY_ALU

#define DIRTY_ALU 0x0001

Definition at line 256 of file xe.h.

◆ DIRTY_CLIP

#define DIRTY_CLIP 0x0004

Definition at line 258 of file xe.h.

◆ DIRTY_CONTROL

#define DIRTY_CONTROL 0x0010

Definition at line 260 of file xe.h.

◆ DIRTY_FETCH

#define DIRTY_FETCH 0x0002

Definition at line 257 of file xe.h.

◆ DIRTY_INTEGER

#define DIRTY_INTEGER 0x0008

Definition at line 259 of file xe.h.

◆ DIRTY_MISC

#define DIRTY_MISC 0x0040

Definition at line 262 of file xe.h.

◆ DIRTY_SHADER

#define DIRTY_SHADER 0x0020

Definition at line 261 of file xe.h.

◆ SHADER_TYPE_PIXEL

#define SHADER_TYPE_PIXEL 1

Definition at line 12 of file xe.h.

◆ SHADER_TYPE_VERTEX

#define SHADER_TYPE_VERTEX 0

Definition at line 13 of file xe.h.

◆ SWIZZLE_XY01

#define SWIZZLE_XY01 0xA08

Definition at line 140 of file xe.h.

◆ SWIZZLE_XY0_

#define SWIZZLE_XY0_ 0xE08

Definition at line 144 of file xe.h.

◆ SWIZZLE_XY__

#define SWIZZLE_XY__ 0xFC8

Definition at line 141 of file xe.h.

◆ SWIZZLE_XYZ0

#define SWIZZLE_XYZ0 0x0C8

Definition at line 143 of file xe.h.

◆ SWIZZLE_XYZ1

#define SWIZZLE_XYZ1 0xA88

Definition at line 139 of file xe.h.

◆ SWIZZLE_XYZ_

#define SWIZZLE_XYZ_ 0xEC8

Definition at line 142 of file xe.h.

◆ SWIZZLE_XYZW

#define SWIZZLE_XYZW 0x688

Definition at line 138 of file xe.h.

◆ XE_BLEND_BLENDFACTOR

#define XE_BLEND_BLENDFACTOR 12

Definition at line 43 of file xe.h.

◆ XE_BLEND_CONSTANTALPHA

#define XE_BLEND_CONSTANTALPHA 14

Definition at line 45 of file xe.h.

◆ XE_BLEND_DESTALPHA

#define XE_BLEND_DESTALPHA 10

Definition at line 41 of file xe.h.

◆ XE_BLEND_DESTCOLOR

#define XE_BLEND_DESTCOLOR 8

Definition at line 39 of file xe.h.

◆ XE_BLEND_INVBLENDFACTOR

#define XE_BLEND_INVBLENDFACTOR 13

Definition at line 44 of file xe.h.

◆ XE_BLEND_INVCONSTANTALPHA

#define XE_BLEND_INVCONSTANTALPHA 15

Definition at line 46 of file xe.h.

◆ XE_BLEND_INVDESTALPHA

#define XE_BLEND_INVDESTALPHA 11

Definition at line 42 of file xe.h.

◆ XE_BLEND_INVDESTCOLOR

#define XE_BLEND_INVDESTCOLOR 9

Definition at line 40 of file xe.h.

◆ XE_BLEND_INVSRCALPHA

#define XE_BLEND_INVSRCALPHA 7

Definition at line 38 of file xe.h.

◆ XE_BLEND_INVSRCCOLOR

#define XE_BLEND_INVSRCCOLOR 5

Definition at line 36 of file xe.h.

◆ XE_BLEND_ONE

#define XE_BLEND_ONE 1

Definition at line 34 of file xe.h.

◆ XE_BLEND_SRCALPHA

#define XE_BLEND_SRCALPHA 6

Definition at line 37 of file xe.h.

◆ XE_BLEND_SRCALPHASAT

#define XE_BLEND_SRCALPHASAT 16

Definition at line 47 of file xe.h.

◆ XE_BLEND_SRCCOLOR

#define XE_BLEND_SRCCOLOR 4

Definition at line 35 of file xe.h.

◆ XE_BLEND_ZERO

#define XE_BLEND_ZERO 0

Definition at line 33 of file xe.h.

◆ XE_BLENDOP_ADD

#define XE_BLENDOP_ADD 0

Definition at line 53 of file xe.h.

◆ XE_BLENDOP_MAX

#define XE_BLENDOP_MAX 3

Definition at line 57 of file xe.h.

◆ XE_BLENDOP_MIN

#define XE_BLENDOP_MIN 2

Definition at line 56 of file xe.h.

◆ XE_BLENDOP_REVSUBTRACT

#define XE_BLENDOP_REVSUBTRACT 4

Definition at line 55 of file xe.h.

◆ XE_BLENDOP_SUBTRACT

#define XE_BLENDOP_SUBTRACT 1

Definition at line 54 of file xe.h.

◆ XE_CLEAR_COLOR

#define XE_CLEAR_COLOR 1

Definition at line 311 of file xe.h.

◆ XE_CLEAR_DS

#define XE_CLEAR_DS 2

Definition at line 312 of file xe.h.

◆ XE_CLIP_ENABLE_PLANE0

#define XE_CLIP_ENABLE_PLANE0 0x0001

Definition at line 77 of file xe.h.

◆ XE_CLIP_ENABLE_PLANE1

#define XE_CLIP_ENABLE_PLANE1 0x0002

Definition at line 78 of file xe.h.

◆ XE_CLIP_ENABLE_PLANE2

#define XE_CLIP_ENABLE_PLANE2 0x0004

Definition at line 79 of file xe.h.

◆ XE_CLIP_ENABLE_PLANE3

#define XE_CLIP_ENABLE_PLANE3 0x0008

Definition at line 80 of file xe.h.

◆ XE_CLIP_ENABLE_PLANE4

#define XE_CLIP_ENABLE_PLANE4 0x0010

Definition at line 81 of file xe.h.

◆ XE_CLIP_ENABLE_PLANE5

#define XE_CLIP_ENABLE_PLANE5 0x0020

Definition at line 82 of file xe.h.

◆ XE_CLIP_MASTER_DISABLE

#define XE_CLIP_MASTER_DISABLE 0x10000

Definition at line 83 of file xe.h.

◆ XE_CMP_ALWAYS

#define XE_CMP_ALWAYS 7

Definition at line 31 of file xe.h.

◆ XE_CMP_EQUAL

#define XE_CMP_EQUAL 2

Definition at line 26 of file xe.h.

◆ XE_CMP_GREATER

#define XE_CMP_GREATER 4

Definition at line 28 of file xe.h.

◆ XE_CMP_GREATEREQUAL

#define XE_CMP_GREATEREQUAL 6

Definition at line 30 of file xe.h.

◆ XE_CMP_LESS

#define XE_CMP_LESS 1

Definition at line 25 of file xe.h.

◆ XE_CMP_LESSEQUAL

#define XE_CMP_LESSEQUAL 3

Definition at line 27 of file xe.h.

◆ XE_CMP_NEVER

#define XE_CMP_NEVER 0

Definition at line 24 of file xe.h.

◆ XE_CMP_NOTEQUAL

#define XE_CMP_NOTEQUAL 5

Definition at line 29 of file xe.h.

◆ XE_CULL_CCW

#define XE_CULL_CCW 6

Definition at line 51 of file xe.h.

◆ XE_CULL_CW

#define XE_CULL_CW 2

Definition at line 50 of file xe.h.

◆ XE_CULL_NONE

#define XE_CULL_NONE 0

Definition at line 49 of file xe.h.

◆ XE_FILL_POINT

#define XE_FILL_POINT 0x01

Definition at line 85 of file xe.h.

◆ XE_FILL_SOLID

#define XE_FILL_SOLID 0x00

Definition at line 87 of file xe.h.

◆ XE_FILL_WIREFRAME

#define XE_FILL_WIREFRAME 0x25

Definition at line 86 of file xe.h.

◆ XE_FMT_16161616

#define XE_FMT_16161616 26

Definition at line 180 of file xe.h.

◆ XE_FMT_16BE

#define XE_FMT_16BE 0x40

Definition at line 184 of file xe.h.

◆ XE_FMT_5551

#define XE_FMT_5551 3

Definition at line 178 of file xe.h.

◆ XE_FMT_565

#define XE_FMT_565 4

Definition at line 179 of file xe.h.

◆ XE_FMT_8

#define XE_FMT_8 2

Definition at line 176 of file xe.h.

◆ XE_FMT_8888

#define XE_FMT_8888 6

Definition at line 177 of file xe.h.

◆ XE_FMT_ARGB

#define XE_FMT_ARGB 0x80

Definition at line 181 of file xe.h.

◆ XE_FMT_BGRA

#define XE_FMT_BGRA 0x00

Definition at line 182 of file xe.h.

◆ XE_FMT_INDEX16

#define XE_FMT_INDEX16 0

Definition at line 225 of file xe.h.

◆ XE_FMT_INDEX32

#define XE_FMT_INDEX32 1

Definition at line 226 of file xe.h.

◆ XE_FMT_MASK

#define XE_FMT_MASK 0x3F

Definition at line 175 of file xe.h.

◆ XE_LOCK_READ

#define XE_LOCK_READ 1

Definition at line 393 of file xe.h.

◆ XE_LOCK_WRITE

#define XE_LOCK_WRITE 2

Definition at line 394 of file xe.h.

◆ XE_MAX_INDICES_PER_DRAW

#define XE_MAX_INDICES_PER_DRAW 65535

Definition at line 10 of file xe.h.

◆ XE_PRIMTYPE_LINELIST

#define XE_PRIMTYPE_LINELIST 2

Definition at line 16 of file xe.h.

◆ XE_PRIMTYPE_LINESTRIP

#define XE_PRIMTYPE_LINESTRIP 3

Definition at line 17 of file xe.h.

◆ XE_PRIMTYPE_POINTLIST

#define XE_PRIMTYPE_POINTLIST 1

Definition at line 15 of file xe.h.

◆ XE_PRIMTYPE_QUADLIST

#define XE_PRIMTYPE_QUADLIST 13

Definition at line 22 of file xe.h.

◆ XE_PRIMTYPE_RECTLIST

#define XE_PRIMTYPE_RECTLIST 8

Definition at line 21 of file xe.h.

◆ XE_PRIMTYPE_TRIANGLEFAN

#define XE_PRIMTYPE_TRIANGLEFAN 5

Definition at line 19 of file xe.h.

◆ XE_PRIMTYPE_TRIANGLELIST

#define XE_PRIMTYPE_TRIANGLELIST 4

Definition at line 18 of file xe.h.

◆ XE_PRIMTYPE_TRIANGLESTRIP

#define XE_PRIMTYPE_TRIANGLESTRIP 6

Definition at line 20 of file xe.h.

◆ XE_SHADER_MAX_INSTANCES

#define XE_SHADER_MAX_INSTANCES 16

Definition at line 97 of file xe.h.

◆ XE_SOURCE_COLOR

#define XE_SOURCE_COLOR 0

Definition at line 308 of file xe.h.

◆ XE_SOURCE_DS

#define XE_SOURCE_DS 4

Definition at line 309 of file xe.h.

◆ XE_STENCILOP_DECR

#define XE_STENCILOP_DECR 7

Definition at line 66 of file xe.h.

◆ XE_STENCILOP_DECRSAT

#define XE_STENCILOP_DECRSAT 4

Definition at line 63 of file xe.h.

◆ XE_STENCILOP_INCR

#define XE_STENCILOP_INCR 6

Definition at line 65 of file xe.h.

◆ XE_STENCILOP_INCRSAT

#define XE_STENCILOP_INCRSAT 3

Definition at line 62 of file xe.h.

◆ XE_STENCILOP_INVERT

#define XE_STENCILOP_INVERT 5

Definition at line 64 of file xe.h.

◆ XE_STENCILOP_KEEP

#define XE_STENCILOP_KEEP 0

Definition at line 59 of file xe.h.

◆ XE_STENCILOP_REPLACE

#define XE_STENCILOP_REPLACE 2

Definition at line 61 of file xe.h.

◆ XE_STENCILOP_ZERO

#define XE_STENCILOP_ZERO 1

Definition at line 60 of file xe.h.

◆ XE_TEXADDR_BORDER

#define XE_TEXADDR_BORDER 6

Definition at line 74 of file xe.h.

◆ XE_TEXADDR_BORDER_HALF

#define XE_TEXADDR_BORDER_HALF 4

Definition at line 72 of file xe.h.

◆ XE_TEXADDR_CLAMP

#define XE_TEXADDR_CLAMP 2

Definition at line 70 of file xe.h.

◆ XE_TEXADDR_MIRROR

#define XE_TEXADDR_MIRROR 1

Definition at line 69 of file xe.h.

◆ XE_TEXADDR_MIRRORONCE

#define XE_TEXADDR_MIRRORONCE 3

Definition at line 71 of file xe.h.

◆ XE_TEXADDR_MIRRORONCE_BORDER

#define XE_TEXADDR_MIRRORONCE_BORDER 7

Definition at line 75 of file xe.h.

◆ XE_TEXADDR_MIRRORONCE_BORDER_HALF

#define XE_TEXADDR_MIRRORONCE_BORDER_HALF 5

Definition at line 73 of file xe.h.

◆ XE_TEXADDR_WRAP

#define XE_TEXADDR_WRAP 0

Definition at line 68 of file xe.h.

◆ XE_TYPE_FLOAT2

#define XE_TYPE_FLOAT2 37

Definition at line 153 of file xe.h.

◆ XE_TYPE_FLOAT3

#define XE_TYPE_FLOAT3 57

Definition at line 154 of file xe.h.

◆ XE_TYPE_FLOAT4

#define XE_TYPE_FLOAT4 38

Definition at line 155 of file xe.h.

◆ XE_TYPE_UBYTE4

#define XE_TYPE_UBYTE4 6

Definition at line 156 of file xe.h.

◆ XE_USAGE_BINORMAL

#define XE_USAGE_BINORMAL 7

Definition at line 166 of file xe.h.

◆ XE_USAGE_BLENDINDICES

#define XE_USAGE_BLENDINDICES 2

Definition at line 161 of file xe.h.

◆ XE_USAGE_BLENDWEIGHTS

#define XE_USAGE_BLENDWEIGHTS 1

Definition at line 160 of file xe.h.

◆ XE_USAGE_COLOR

#define XE_USAGE_COLOR 10

Definition at line 169 of file xe.h.

◆ XE_USAGE_DEPTH

#define XE_USAGE_DEPTH 12

Definition at line 171 of file xe.h.

◆ XE_USAGE_FOG

#define XE_USAGE_FOG 11

Definition at line 170 of file xe.h.

◆ XE_USAGE_NORMAL

#define XE_USAGE_NORMAL 3

Definition at line 162 of file xe.h.

◆ XE_USAGE_POSITION

#define XE_USAGE_POSITION 0

Definition at line 159 of file xe.h.

◆ XE_USAGE_POSITIONT

#define XE_USAGE_POSITIONT 9

Definition at line 168 of file xe.h.

◆ XE_USAGE_PSIZE

#define XE_USAGE_PSIZE 4

Definition at line 163 of file xe.h.

◆ XE_USAGE_SAMPLE

#define XE_USAGE_SAMPLE 13

Definition at line 172 of file xe.h.

◆ XE_USAGE_TANGENT

#define XE_USAGE_TANGENT 6

Definition at line 165 of file xe.h.

◆ XE_USAGE_TESSFACTOR

#define XE_USAGE_TESSFACTOR 8

Definition at line 167 of file xe.h.

◆ XE_USAGE_TEXCOORD

#define XE_USAGE_TEXCOORD 5

Definition at line 164 of file xe.h.

Function Documentation

◆ attribute()

void __attribute__ ( (noreturn) )

◆ Xe_Clear()

void Xe_Clear	(	struct XenosDevice *	xe,
		int	flags
	)

Definition at line 1167 of file xe.c.

◆ Xe_CreateIndexBuffer()

struct XenosIndexBuffer * Xe_CreateIndexBuffer	(	struct XenosDevice *	xe,
		int	length,
		int	format
	)

Definition at line 1974 of file xe.c.

◆ Xe_CreateTexture()

struct XenosSurface * Xe_CreateTexture	(	struct XenosDevice *	xe,
		unsigned int	width,
		unsigned int	height,
		unsigned int	levels,
		int	format,
		int	tiled
	)

Definition at line 2066 of file xe.c.

◆ Xe_CreateVertexBuffer()

struct XenosVertexBuffer * Xe_CreateVertexBuffer	(	struct XenosDevice *	xe,
		int	length
	)

Definition at line 1763 of file xe.c.

◆ Xe_DestroyIndexBuffer()

void Xe_DestroyIndexBuffer	(	struct XenosDevice *	xe,
		struct XenosIndexBuffer *	ib
	)

Definition at line 1985 of file xe.c.

◆ Xe_DestroyTexture()

void Xe_DestroyTexture	(	struct XenosDevice *	xe,
		struct XenosSurface *	surface
	)

Definition at line 2102 of file xe.c.

◆ Xe_DestroyVertexBuffer()

void Xe_DestroyVertexBuffer	(	struct XenosDevice *	xe,
		struct XenosVertexBuffer *	vb
	)

Definition at line 1777 of file xe.c.

◆ Xe_DirtyAluConstant()

void Xe_DirtyAluConstant	(	struct XenosDevice *	xe,
		int	base,
		int	len
	)

Definition at line 570 of file xe.c.

◆ Xe_DirtyFetch()

void Xe_DirtyFetch	(	struct XenosDevice *	xe,
		int	base,
		int	len
	)

Definition at line 583 of file xe.c.

◆ Xe_Draw()

void Xe_Draw	(	struct XenosDevice *	xe,
		struct XenosVertexBuffer *	vb,
		struct XenosIndexBuffer *	ib
	)

Definition at line 1880 of file xe.c.

◆ Xe_DrawIndexedPrimitive()

void Xe_DrawIndexedPrimitive	(	struct XenosDevice *	xe,
		int	type,
		int	base_index,
		int	min_index,
		int	num_vertices,
		int	start_index,
		int	primitive_count
	)

Definition at line 1926 of file xe.c.

◆ Xe_DrawPrimitive()

void Xe_DrawPrimitive	(	struct XenosDevice *	xe,
		int	type,
		int	start,
		int	primitive_count
	)

Definition at line 1943 of file xe.c.

◆ Xe_Execute()

void Xe_Execute ( struct XenosDevice * xe )

Definition at line 1278 of file xe.c.

◆ Xe_GetFramebufferSurface()

struct XenosSurface * Xe_GetFramebufferSurface ( struct XenosDevice * xe )

Definition at line 1252 of file xe.c.

◆ Xe_GetShaderLength()

int Xe_GetShaderLength	(	struct XenosDevice *	xe,
		void *	sh
	)

Definition at line 949 of file xe.c.

◆ Xe_IB_Lock()

void * Xe_IB_Lock	(	struct XenosDevice *	xe,
		struct XenosIndexBuffer *	ib,
		int	offset,
		int	size,
		int	flags
	)

Definition at line 2002 of file xe.c.

◆ Xe_IB_Unlock()

void Xe_IB_Unlock	(	struct XenosDevice *	xe,
		struct XenosIndexBuffer *	ib
	)

Definition at line 2008 of file xe.c.

◆ Xe_Init()

void Xe_Init ( struct XenosDevice * xe )

Definition at line 956 of file xe.c.

◆ Xe_InstantiateShader()

void Xe_InstantiateShader	(	struct XenosDevice *	xe,
		struct XenosShader *	sh,
		unsigned int	index
	)

Definition at line 935 of file xe.c.

◆ Xe_InvalidateState()

void Xe_InvalidateState ( struct XenosDevice * xe )

Definition at line 1657 of file xe.c.

◆ Xe_IsVBlank()

int Xe_IsVBlank ( struct XenosDevice * xe )

Definition at line 2141 of file xe.c.

◆ Xe_LoadShader()

struct XenosShader * Xe_LoadShader	(	struct XenosDevice *	xe,
		const char *	filename
	)

Definition at line 596 of file xe.c.

◆ Xe_LoadShaderFromMemory()

struct XenosShader * Xe_LoadShaderFromMemory	(	struct XenosDevice *	xe,
		void *	shader
	)

Definition at line 613 of file xe.c.

◆ Xe_Resolve()

void Xe_Resolve ( struct XenosDevice * xe )

Definition at line 1175 of file xe.c.

◆ Xe_ResolveInto()

void Xe_ResolveInto	(	struct XenosDevice *	xe,
		struct XenosSurface *	surface,
		int	source,
		int	clear
	)

Definition at line 1069 of file xe.c.

◆ Xe_SetAlphaFunc()

void Xe_SetAlphaFunc	(	struct XenosDevice *	xe,
		unsigned int	func
	)

Definition at line 1520 of file xe.c.

◆ Xe_SetAlphaRef()

void Xe_SetAlphaRef	(	struct XenosDevice *	xe,
		float	alpharef
	)

Definition at line 1528 of file xe.c.

◆ Xe_SetAlphaTestEnable()

void Xe_SetAlphaTestEnable	(	struct XenosDevice *	xe,
		int	enable
	)

Definition at line 1513 of file xe.c.

◆ Xe_SetBlendControl()

void Xe_SetBlendControl	(	struct XenosDevice *	xe,
		int	col_src,
		int	col_op,
		int	col_dst,
		int	alpha_src,
		int	alpha_op,
		int	alpha_dst
	)

Definition at line 1451 of file xe.c.

◆ Xe_SetBlendOp()

void Xe_SetBlendOp	(	struct XenosDevice *	xe,
		unsigned int	blendop
	)

Definition at line 1473 of file xe.c.

◆ Xe_SetBlendOpAlpha()

void Xe_SetBlendOpAlpha	(	struct XenosDevice *	xe,
		unsigned int	blendop
	)

Definition at line 1497 of file xe.c.

◆ Xe_SetClearColor()

void Xe_SetClearColor	(	struct XenosDevice *	xe,
		u32	clearcolor
	)

Definition at line 1758 of file xe.c.

◆ Xe_SetClipPlane()

void Xe_SetClipPlane	(	struct XenosDevice *	xe,
		int	idx,
		float *	plane
	)

Definition at line 1650 of file xe.c.

◆ Xe_SetClipPlaneEnables()

void Xe_SetClipPlaneEnables	(	struct XenosDevice *	xe,
		int	enables
	)

Definition at line 1643 of file xe.c.

◆ Xe_SetCullMode()

void Xe_SetCullMode	(	struct XenosDevice *	xe,
		unsigned int	cullmode
	)

Definition at line 1505 of file xe.c.

◆ Xe_SetDestBlend()

void Xe_SetDestBlend	(	struct XenosDevice *	xe,
		unsigned int	blend
	)

Definition at line 1465 of file xe.c.

◆ Xe_SetDestBlendAlpha()

void Xe_SetDestBlendAlpha	(	struct XenosDevice *	xe,
		unsigned int	blend
	)

Definition at line 1489 of file xe.c.

◆ Xe_SetFillMode()

void Xe_SetFillMode	(	struct XenosDevice *	xe,
		int	front,
		int	back
	)

Definition at line 1441 of file xe.c.

◆ Xe_SetFrameBufferSurface()

void Xe_SetFrameBufferSurface	(	struct XenosDevice *	xe,
		struct XenosSurface *	fb
	)

Definition at line 1257 of file xe.c.

◆ Xe_SetIndices()

void Xe_SetIndices	(	struct XenosDevice *	de,
		struct XenosIndexBuffer *	ib
	)

Definition at line 1969 of file xe.c.

◆ Xe_SetPixelShaderConstantB()

void Xe_SetPixelShaderConstantB	(	struct XenosDevice *	xe,
		int	index,
		int	value
	)

Definition at line 2051 of file xe.c.

◆ Xe_SetPixelShaderConstantF()

void Xe_SetPixelShaderConstantF	(	struct XenosDevice *	xe,
		int	start,
		const float *	data,
		int	count
	)

Definition at line 2025 of file xe.c.

◆ Xe_SetRenderTarget()

void const char void Xe_SetRenderTarget	(	struct XenosDevice *	xe,
		struct XenosSurface *	rt
	)

Definition at line 998 of file xe.c.

◆ Xe_SetScissor()

void Xe_SetScissor	(	struct XenosDevice *	xe,
		int	enable,
		int	left,
		int	top,
		int	right,
		int	bottom
	)

Definition at line 1633 of file xe.c.

◆ Xe_SetShader()

void Xe_SetShader	(	struct XenosDevice *	xe,
		int	type,
		struct XenosShader *	sh,
		int	instance
	)

Definition at line 1665 of file xe.c.

◆ Xe_SetSrcBlend()

void Xe_SetSrcBlend	(	struct XenosDevice *	xe,
		unsigned int	blend
	)

Definition at line 1457 of file xe.c.

◆ Xe_SetSrcBlendAlpha()

void Xe_SetSrcBlendAlpha	(	struct XenosDevice *	xe,
		unsigned int	blend
	)

Definition at line 1481 of file xe.c.

◆ Xe_SetStencilEnable()

void Xe_SetStencilEnable	(	struct XenosDevice *	xe,
		unsigned int	enable
	)

Definition at line 1550 of file xe.c.

◆ Xe_SetStencilFunc()

void Xe_SetStencilFunc	(	struct XenosDevice *	xe,
		int	bfff,
		unsigned int	func
	)

Definition at line 1534 of file xe.c.

◆ Xe_SetStencilMask()

void Xe_SetStencilMask	(	struct XenosDevice *	xe,
		int	bfff,
		int	mask
	)

Definition at line 1613 of file xe.c.

◆ Xe_SetStencilOp()

void Xe_SetStencilOp	(	struct XenosDevice *	xe,
		int	bfff,
		int	fail,
		int	zfail,
		int	pass
	)

Definition at line 1558 of file xe.c.

◆ Xe_SetStencilRef()

void Xe_SetStencilRef	(	struct XenosDevice *	xe,
		int	bfff,
		int	ref
	)

Definition at line 1603 of file xe.c.

◆ Xe_SetStencilWriteMask()

void Xe_SetStencilWriteMask	(	struct XenosDevice *	xe,
		int	bfff,
		int	writemask
	)

Definition at line 1623 of file xe.c.

◆ Xe_SetStreamSource()

void Xe_SetStreamSource	(	struct XenosDevice *	xe,
		int	index,
		struct XenosVertexBuffer *	vb,
		int	offset,
		int	stride
	)

Definition at line 1959 of file xe.c.

◆ Xe_SetTexture()

void Xe_SetTexture	(	struct XenosDevice *	xe,
		int	index,
		struct XenosSurface *	tex
	)

Definition at line 1748 of file xe.c.

◆ Xe_SetVertexShaderConstantB()

void Xe_SetVertexShaderConstantB	(	struct XenosDevice *	xe,
		int	index,
		int	value
	)

Definition at line 2038 of file xe.c.

◆ Xe_SetVertexShaderConstantF()

void Xe_SetVertexShaderConstantF	(	struct XenosDevice *	xe,
		int	start,
		const float *	data,
		int	count
	)

Definition at line 2013 of file xe.c.

◆ Xe_SetZEnable()

void Xe_SetZEnable	(	struct XenosDevice *	xe,
		int	zw
	)

Definition at line 1435 of file xe.c.

◆ Xe_SetZFunc()

void Xe_SetZFunc	(	struct XenosDevice *	xe,
		int	z_func
	)

Definition at line 1423 of file xe.c.

◆ Xe_SetZWrite()

void Xe_SetZWrite	(	struct XenosDevice *	xe,
		int	zw
	)

Definition at line 1429 of file xe.c.

◆ Xe_ShaderApplyVFetchPatches()

void Xe_ShaderApplyVFetchPatches	(	struct XenosDevice *	xe,
		struct XenosShader *	sh,
		unsigned int	index,
		const struct XenosVBFFormat *	fmt
	)

Definition at line 788 of file xe.c.

◆ Xe_Surface_LockRect()

void * Xe_Surface_LockRect	(	struct XenosDevice *	xe,
		struct XenosSurface *	surface,
		int	x,
		int	y,
		int	w,
		int	h,
		int	flags
	)

Definition at line 2108 of file xe.c.

◆ Xe_Surface_Unlock()

void Xe_Surface_Unlock	(	struct XenosDevice *	xe,
		struct XenosSurface *	surface
	)

Definition at line 2135 of file xe.c.

◆ Xe_Sync()

void Xe_Sync ( struct XenosDevice * xe )

Definition at line 1302 of file xe.c.

◆ Xe_VB_Lock()

void * Xe_VB_Lock	(	struct XenosDevice *	xe,
		struct XenosVertexBuffer *	vb,
		int	offset,
		int	size,
		int	flags
	)

Definition at line 1991 of file xe.c.

◆ Xe_VB_Unlock()

void Xe_VB_Unlock	(	struct XenosDevice *	xe,
		struct XenosVertexBuffer *	vb
	)

Definition at line 1997 of file xe.c.

◆ Xe_VBBegin()

void Xe_VBBegin	(	struct XenosDevice *	xe,
		int	pitch
	)

Definition at line 1824 of file xe.c.

◆ Xe_VBEnd()

struct XenosVertexBuffer * Xe_VBEnd ( struct XenosDevice * xe )

Definition at line 1863 of file xe.c.

◆ Xe_VBFCalcSize()

int Xe_VBFCalcSize	(	struct XenosDevice *	xe,
		const struct XenosVBFElement *	fmt
	)

Definition at line 689 of file xe.c.

◆ Xe_VBFCalcStride()

int Xe_VBFCalcStride	(	struct XenosDevice *	xe,
		const struct XenosVBFFormat *	fmt
	)

Definition at line 723 of file xe.c.

◆ Xe_VBPoolAdd()

void Xe_VBPoolAdd	(	struct XenosDevice *	xe,
		struct XenosVertexBuffer *	vb
	)

Definition at line 1805 of file xe.c.

◆ Xe_VBPoolAlloc()

struct XenosVertexBuffer * Xe_VBPoolAlloc	(	struct XenosDevice *	xe,
		int	size
	)

Definition at line 1783 of file xe.c.

◆ Xe_VBPut()

void Xe_VBPut	(	struct XenosDevice *	xe,
		void *	data,
		int	len
	)

Definition at line 1831 of file xe.c.

◆ Xe_VBReclaim()

void Xe_VBReclaim ( struct XenosDevice * xe )

Definition at line 1814 of file xe.c.

Variable Documentation

◆ fmt

void const char* fmt

Definition at line 303 of file xe.h.

Data Structures

Macros

Functions

Variables
