#include "lwip/opt.h"
#include "lwip/def.h"
#include "lwip/pbuf.h"
#include "lwip/ip_addr.h"
#include "lwip/err.h"
#include "lwip/netif.h"

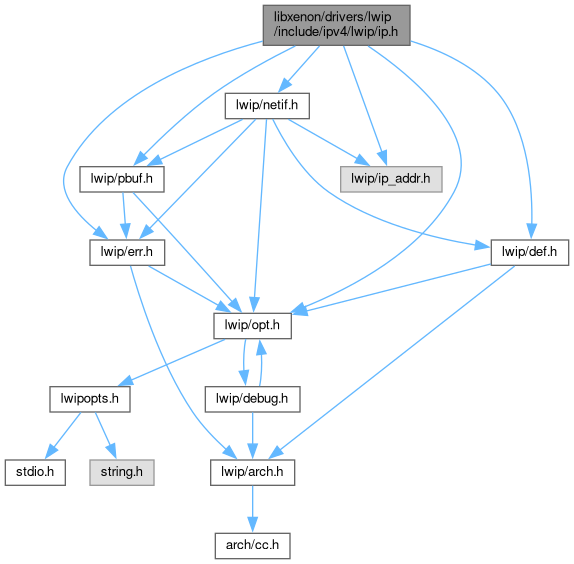

Include dependency graph for ip.h:

Data Structures
struct	ip_pcb

struct	ip_hdr

Macros
#define	IP_OPTIONS_SEND LWIP_IGMP

#define	IP_HLEN 20

#define	IP_PROTO_ICMP 1

#define	IP_PROTO_IGMP 2

#define	IP_PROTO_UDP 17

#define	IP_PROTO_UDPLITE 136

#define	IP_PROTO_TCP 6

#define	IP_HDRINCL NULL

#define	IP_PCB_ADDRHINT

#define	IP_PCB

#define	SOF_ACCEPTCONN 0x02U /* socket has had listen() */

#define	SOF_REUSEADDR 0x04U /* allow local address reuse */

#define	SOF_KEEPALIVE 0x08U /* keep connections alive */

#define	SOF_BROADCAST 0x20U /* permit to send and to receive broadcast messages (see IP_SOF_BROADCAST option) */

#define	SOF_LINGER 0x80U /* linger on close if data present */

#define	SOF_INHERITED (SOF_REUSEADDR\|SOF_KEEPALIVE\|SOF_LINGER/\|SOF_DEBUG\|SOF_DONTROUTE\|SOF_OOBINLINE/)

#define	IP_RF 0x8000U /* reserved fragment flag */

#define	IP_DF 0x4000U /* dont fragment flag */

#define	IP_MF 0x2000U /* more fragments flag */

#define	IP_OFFMASK 0x1fffU /* mask for fragmenting bits */

#define	IPH_V(hdr) ((hdr)->_v_hl >> 4)

#define	IPH_HL(hdr) ((hdr)->_v_hl & 0x0f)

#define	IPH_TOS(hdr) ((hdr)->_tos)

#define	IPH_LEN(hdr) ((hdr)->_len)

#define	IPH_ID(hdr) ((hdr)->_id)

#define	IPH_OFFSET(hdr) ((hdr)->_offset)

#define	IPH_TTL(hdr) ((hdr)->_ttl)

#define	IPH_PROTO(hdr) ((hdr)->_proto)

#define	IPH_CHKSUM(hdr) ((hdr)->_chksum)

#define	IPH_VHL_SET(hdr, v, hl) (hdr)->_v_hl = (((v) << 4) \| (hl))

#define	IPH_TOS_SET(hdr, tos) (hdr)->_tos = (tos)

#define	IPH_LEN_SET(hdr, len) (hdr)->_len = (len)

#define	IPH_ID_SET(hdr, id) (hdr)->_id = (id)

#define	IPH_OFFSET_SET(hdr, off) (hdr)->_offset = (off)

#define	IPH_TTL_SET(hdr, ttl) (hdr)->_ttl = (u8_t)(ttl)

#define	IPH_PROTO_SET(hdr, proto) (hdr)->_proto = (u8_t)(proto)

#define	IPH_CHKSUM_SET(hdr, chksum) (hdr)->_chksum = (chksum)

#define	ip_init() /* Compatibility define, not init needed. */

#define	ip_current_netif() (current_netif)

#define	ip_current_header() (current_header)

#define	ip_current_src_addr() (&current_iphdr_src)

#define	ip_current_dest_addr() (&current_iphdr_dest)

#define	ip_get_option(pcb, opt) ((pcb)->so_options & (opt))

#define	ip_set_option(pcb, opt) ((pcb)->so_options \|= (opt))

#define	ip_reset_option(pcb, opt) ((pcb)->so_options &= ~(opt))

#define	ip_debug_print(p)

Functions
struct netif *	ip_route (ip_addr_t *dest)

err_t	ip_input (struct pbuf p, struct netif inp)

err_t	ip_output (struct pbuf p, ip_addr_t src, ip_addr_t *dest, u8_t ttl, u8_t tos, u8_t proto)

err_t	ip_output_if (struct pbuf p, ip_addr_t src, ip_addr_t dest, u8_t ttl, u8_t tos, u8_t proto, struct netif netif)

Variables
PACK_STRUCT_BEGIN struct ip_hdr	PACK_STRUCT_STRUCT

struct netif *	current_netif

const struct ip_hdr *	current_header

ip_addr_t	current_iphdr_src

ip_addr_t	current_iphdr_dest

Macro Definition Documentation

◆ ip_current_dest_addr

#define ip_current_dest_addr ( ) (&current_iphdr_dest)

Destination IP address of current_header

Definition at line 202 of file ip.h.

◆ ip_current_header

#define ip_current_header ( ) (current_header)

Get the IP header of the current packet. This function must only be called from a receive callback (udp_recv, raw_recv, tcp_accept). It will return NULL otherwise.

Definition at line 198 of file ip.h.

◆ ip_current_netif

#define ip_current_netif ( ) (current_netif)

Get the interface that received the current packet. This function must only be called from a receive callback (udp_recv, raw_recv, tcp_accept). It will return NULL otherwise.

Definition at line 194 of file ip.h.

◆ ip_current_src_addr

#define ip_current_src_addr ( ) (&current_iphdr_src)

Source IP address of current_header

Definition at line 200 of file ip.h.

◆ ip_debug_print

#define ip_debug_print ( p )

Definition at line 214 of file ip.h.

◆ IP_DF

#define IP_DF 0x4000U /* dont fragment flag */

Definition at line 128 of file ip.h.

◆ ip_get_option

#define ip_get_option	(	pcb,
		opt
	)	((pcb)->so_options & (opt))

Gets an IP pcb option (SOF_* flags)

Definition at line 205 of file ip.h.

◆ IP_HDRINCL

#define IP_HDRINCL NULL

Definition at line 64 of file ip.h.

◆ IP_HLEN

#define IP_HLEN 20

Definition at line 50 of file ip.h.

◆ ip_init

#define ip_init ( void ) /* Compatibility define, not init needed. */

Definition at line 174 of file ip.h.

◆ IP_MF

#define IP_MF 0x2000U /* more fragments flag */

Definition at line 129 of file ip.h.

◆ IP_OFFMASK

#define IP_OFFMASK 0x1fffU /* mask for fragmenting bits */

Definition at line 130 of file ip.h.

◆ IP_OPTIONS_SEND

#define IP_OPTIONS_SEND LWIP_IGMP

Currently, the function ip_output_if_opt() is only used with IGMP

Definition at line 48 of file ip.h.

◆ IP_PCB

#define IP_PCB

Value:

  /* ip addresses in network byte order */ \
  ip_addr_t local_ip; \
  ip_addr_t remote_ip; \
   /* Socket options */  \
  u8_t so_options;      \
   /* Type Of Service */ \
  u8_t tos;              \
  /* Time To Live */     \
  u8_t ttl               \
  /* link layer address resolution hint */ \
  IP_PCB_ADDRHINT

Definition at line 76 of file ip.h.

◆ IP_PCB_ADDRHINT

#define IP_PCB_ADDRHINT

Definition at line 69 of file ip.h.

◆ IP_PROTO_ICMP

#define IP_PROTO_ICMP 1

Definition at line 52 of file ip.h.

◆ IP_PROTO_IGMP

#define IP_PROTO_IGMP 2

Definition at line 53 of file ip.h.

◆ IP_PROTO_TCP

#define IP_PROTO_TCP 6

Definition at line 56 of file ip.h.

◆ IP_PROTO_UDP

#define IP_PROTO_UDP 17

Definition at line 54 of file ip.h.

◆ IP_PROTO_UDPLITE

#define IP_PROTO_UDPLITE 136

Definition at line 55 of file ip.h.

◆ ip_reset_option

#define ip_reset_option	(	pcb,
		opt
	)	((pcb)->so_options &= ~(opt))

Resets an IP pcb option (SOF_* flags)

Definition at line 209 of file ip.h.

◆ IP_RF

#define IP_RF 0x8000U /* reserved fragment flag */

Definition at line 127 of file ip.h.

◆ ip_set_option

#define ip_set_option	(	pcb,
		opt
	)	((pcb)->so_options \|= (opt))

Sets an IP pcb option (SOF_* flags)

Definition at line 207 of file ip.h.

◆ IPH_CHKSUM

#define IPH_CHKSUM ( hdr ) ((hdr)->_chksum)

Definition at line 154 of file ip.h.

◆ IPH_CHKSUM_SET

#define IPH_CHKSUM_SET	(	hdr,
		chksum
	)	(hdr)->_chksum = (chksum)

Definition at line 163 of file ip.h.

◆ IPH_HL

#define IPH_HL ( hdr ) ((hdr)->_v_hl & 0x0f)

Definition at line 147 of file ip.h.

◆ IPH_ID

#define IPH_ID ( hdr ) ((hdr)->_id)

Definition at line 150 of file ip.h.

◆ IPH_ID_SET

#define IPH_ID_SET	(	hdr,
		id
	)	(hdr)->_id = (id)

Definition at line 159 of file ip.h.

◆ IPH_LEN

#define IPH_LEN ( hdr ) ((hdr)->_len)

Definition at line 149 of file ip.h.

◆ IPH_LEN_SET

#define IPH_LEN_SET	(	hdr,
		len
	)	(hdr)->_len = (len)

Definition at line 158 of file ip.h.

◆ IPH_OFFSET

#define IPH_OFFSET ( hdr ) ((hdr)->_offset)

Definition at line 151 of file ip.h.

◆ IPH_OFFSET_SET

#define IPH_OFFSET_SET	(	hdr,
		off
	)	(hdr)->_offset = (off)

Definition at line 160 of file ip.h.

◆ IPH_PROTO

#define IPH_PROTO ( hdr ) ((hdr)->_proto)

Definition at line 153 of file ip.h.

◆ IPH_PROTO_SET

#define IPH_PROTO_SET	(	hdr,
		proto
	)	(hdr)->_proto = (u8_t)(proto)

Definition at line 162 of file ip.h.

◆ IPH_TOS

#define IPH_TOS ( hdr ) ((hdr)->_tos)

Definition at line 148 of file ip.h.

◆ IPH_TOS_SET

#define IPH_TOS_SET	(	hdr,
		tos
	)	(hdr)->_tos = (tos)

Definition at line 157 of file ip.h.

◆ IPH_TTL

#define IPH_TTL ( hdr ) ((hdr)->_ttl)

Definition at line 152 of file ip.h.

◆ IPH_TTL_SET

#define IPH_TTL_SET	(	hdr,
		ttl
	)	(hdr)->_ttl = (u8_t)(ttl)

Definition at line 161 of file ip.h.

◆ IPH_V

#define IPH_V ( hdr ) ((hdr)->_v_hl >> 4)

Definition at line 146 of file ip.h.

◆ IPH_VHL_SET

#define IPH_VHL_SET	(	hdr,
		v,
		hl
	)	(hdr)->_v_hl = (((v) << 4) \| (hl))

Definition at line 156 of file ip.h.

◆ SOF_ACCEPTCONN

#define SOF_ACCEPTCONN 0x02U /* socket has had listen() */

Definition at line 98 of file ip.h.

◆ SOF_BROADCAST

#define SOF_BROADCAST 0x20U /* permit to send and to receive broadcast messages (see IP_SOF_BROADCAST option) */

Definition at line 102 of file ip.h.

◆ SOF_INHERITED

#define SOF_INHERITED (SOF_REUSEADDR|SOF_KEEPALIVE|SOF_LINGER/*|SOF_DEBUG|SOF_DONTROUTE|SOF_OOBINLINE*/)

Definition at line 109 of file ip.h.

◆ SOF_KEEPALIVE

#define SOF_KEEPALIVE 0x08U /* keep connections alive */

Definition at line 100 of file ip.h.

◆ SOF_LINGER

#define SOF_LINGER 0x80U /* linger on close if data present */

Definition at line 104 of file ip.h.

◆ SOF_REUSEADDR

#define SOF_REUSEADDR 0x04U /* allow local address reuse */

Definition at line 99 of file ip.h.

Function Documentation

◆ ip_input()

err_t ip_input	(	struct pbuf *	p,
		struct netif *	inp
	)

This function is called by the network interface device driver when an IP packet is received. The function does the basic checks of the IP header such as packet size being at least larger than the header size etc. If the packet was not destined for us, the packet is forwarded (using ip_forward). The IP checksum is always checked.

Finally, the packet is sent to the upper layer protocol input function.

Parameters

p	the received IP packet (p->payload points to IP header)
inp	the netif on which this packet was received

Returns: ERR_OK if the packet was processed (could return ERR_* if it wasn't processed, but currently always returns ERR_OK)

Definition at line 305 of file ip.c.

◆ ip_output()

err_t ip_output	(	struct pbuf *	p,
		ip_addr_t *	src,
		ip_addr_t *	dest,
		u8_t	ttl,
		u8_t	tos,
		u8_t	proto
	)

Simple interface to ip_output_if. It finds the outgoing network interface and calls upon ip_output_if to do the actual work.

Parameters

p	the packet to send (p->payload points to the data, e.g. next protocol header; if dest == IP_HDRINCL, p already includes an IP header and p->payload points to that IP header)
src	the source IP address to send from (if src == IP_ADDR_ANY, the IP address of the netif used to send is used as source address)
dest	the destination IP address to send the packet to
ttl	the TTL value to be set in the IP header
tos	the TOS value to be set in the IP header
proto	the PROTOCOL to be set in the IP header

Returns: ERR_RTE if no route is found see ip_output_if() for more return values

Definition at line 818 of file ip.c.

◆ ip_output_if()

err_t ip_output_if	(	struct pbuf *	p,
		ip_addr_t *	src,
		ip_addr_t *	dest,
		u8_t	ttl,
		u8_t	tos,
		u8_t	proto,
		struct netif *	netif
	)

Sends an IP packet on a network interface. This function constructs the IP header and calculates the IP header checksum. If the source IP address is NULL, the IP address of the outgoing network interface is filled in as source address. If the destination IP address is IP_HDRINCL, p is assumed to already include an IP header and p->payload points to it instead of the data.

Parameters

p	the packet to send (p->payload points to the data, e.g. next protocol header; if dest == IP_HDRINCL, p already includes an IP header and p->payload points to that IP header)
src	the source IP address to send from (if src == IP_ADDR_ANY, the IP address of the netif used to send is used as source address)
dest	the destination IP address to send the packet to
ttl	the TTL value to be set in the IP header
tos	the TOS value to be set in the IP header
proto	the PROTOCOL to be set in the IP header
netif	the netif on which to send this packet

Returns: ERR_OK if the packet was sent OK ERR_BUF if p doesn't have enough space for IP/LINK headers returns errors returned by netif->output

Note: ip_id: RFC791 "some host may be able to simply use unique identifiers independent of destination"

Definition at line 641 of file ip.c.

◆ ip_route()

struct netif * ip_route ( ip_addr_t * dest )

Finds the appropriate network interface for a given IP address. It searches the list of network interfaces linearly. A match is found if the masked IP address of the network interface equals the masked IP address given to the function.

Parameters

dest	the destination IP address for which to find the route

Returns: the netif on which to send to reach dest

Definition at line 124 of file ip.c.

Variable Documentation

◆ current_header

const struct ip_hdr* current_header

extern

Header of the input packet currently being processed.

Definition at line 105 of file ip.c.

◆ current_iphdr_dest

ip_addr_t current_iphdr_dest

extern

Destination IP address of current_header

Definition at line 109 of file ip.c.

◆ current_iphdr_src

ip_addr_t current_iphdr_src

extern

Source IP address of current_header

Definition at line 107 of file ip.c.

◆ current_netif

struct netif* current_netif

extern

The interface that provided the packet for the current callback invocation.

Definition at line 100 of file ip.c.

◆ PACK_STRUCT_STRUCT

PACK_STRUCT_BEGIN struct ip_hdr PACK_STRUCT_STRUCT

Data Structures

Macros

Functions

Variables

Macro Definition Documentation

◆ ip_current_dest_addr

◆ ip_current_header

◆ ip_current_netif

◆ ip_current_src_addr

◆ ip_debug_print

◆ IP_DF

◆ ip_get_option

◆ IP_HDRINCL

◆ IP_HLEN

◆ ip_init

◆ IP_MF

◆ IP_OFFMASK

◆ IP_OPTIONS_SEND

◆ IP_PCB

◆ IP_PCB_ADDRHINT

◆ IP_PROTO_ICMP

◆ IP_PROTO_IGMP

◆ IP_PROTO_TCP

◆ IP_PROTO_UDP

◆ IP_PROTO_UDPLITE

◆ ip_reset_option

◆ IP_RF

◆ ip_set_option

◆ IPH_CHKSUM

◆ IPH_CHKSUM_SET

◆ IPH_HL

◆ IPH_ID

◆ IPH_ID_SET

◆ IPH_LEN

◆ IPH_LEN_SET

◆ IPH_OFFSET

◆ IPH_OFFSET_SET

◆ IPH_PROTO

◆ IPH_PROTO_SET

◆ IPH_TOS

◆ IPH_TOS_SET

◆ IPH_TTL

◆ IPH_TTL_SET

◆ IPH_V

◆ IPH_VHL_SET

◆ SOF_ACCEPTCONN

◆ SOF_BROADCAST

◆ SOF_INHERITED

◆ SOF_KEEPALIVE

◆ SOF_LINGER

◆ SOF_REUSEADDR

Function Documentation

◆ ip_input()

◆ ip_output()

◆ ip_output_if()

◆ ip_route()

Variable Documentation

◆ current_header

◆ current_iphdr_dest

◆ current_iphdr_src

◆ current_netif

◆ PACK_STRUCT_STRUCT
