#include "xenos_videomodes.h"

Include dependency graph for xenos.h:

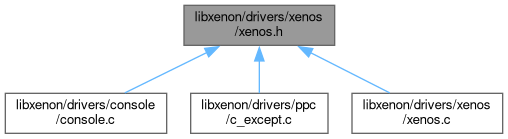

This graph shows which files directly or indirectly include this file:

Macros
#define	D1CRTC_UPDATE_LOCK 0x60e8

#define	DCP_LB_DATA_GAP_BETWEEN_CHUNK 0x6cbc

#define	D1CRTC_DOUBLE_BUFFER_CONTROL 0x60ec

#define	D1CRTC_V_TOTAL 0x6020

#define	D1CRTC_H_TOTAL 0x6000

#define	D1CRTC_H_SYNC_B 0x6010

#define	D1CRTC_H_BLANK_START_END 0x6004

#define	D1CRTC_H_SYNC_B_CNTL 0x6014

#define	D1CRTC_H_SYNC_A 0x6008

#define	D1CRTC_V_SYNC_B 0x6030

#define	D1CRTC_H_SYNC_A_CNTL 0x600c

#define	D1CRTC_MVP_INBAND_CNTL_CAP 0x604c

#define	D1CRTC_MVP_INBAND_CNTL_INSERT 0x6050

#define	D1CRTC_MVP_FIFO_STATUS 0x6044

#define	D1CRTC_MVP_SLAVE_STATUS 0x6048

#define	D1GRPH_UPDATE 0x6144

#define	D1GRPH_PITCH 0x6120

#define	D1GRPH_CONTROL 0x6104

#define	D1GRPH_LUT_SEL 0x6108

#define	D1GRPH_SURFACE_OFFSET_X 0x6124

#define	D1GRPH_SURFACE_OFFSET_Y 0x6128

#define	D1GRPH_X_START 0x612c

#define	D1GRPH_Y_START 0x6130

#define	D1GRPH_X_END 0x6134

#define	D1GRPH_Y_END 0x6138

#define	D1GRPH_PRIMARY_SURFACE_ADDRESS 0x6110

#define	D1GRPH_ENABLE 0x6100

#define	DC_LUT_PWL_DATA 0x6490

#define	AVIVO_D1SCL_UPDATE 0x65cc

#define	AVIVO_D1SCL_SCALER_ENABLE 0x6590

#define	AVIVO_D1MODE_VIEWPORT_START 0x6580

#define	AVIVO_D1MODE_VIEWPORT_SIZE 0x6584

#define	AVIVO_D1MODE_DATA_FORMAT 0x6528

#define	D1GRPH_FLIP_CONTROL 0x6148

#define	AVIVO_D1SCL_SCALER_TAP_CONTROL 0x6594

#define	DC_LUTA_CONTROL 0x64C0

#define	DC_LUT_RW_INDEX 0x6488

#define	DC_LUT_RW_MODE 0x6484

#define	DC_LUT_WRITE_EN_MASK 0x649C

#define	DC_LUT_AUTOFILL 0x64a0

#define	D1CRTC_MVP_CONTROL1 0x6038

#define	D1CRTC_MVP_CONTROL2 0x603c

#define	D1CRTC_MVP_FIFO_CONTROL 0x6040

#define	AVIVO_D1CRTC_V_BLANK_START_END 0x6024

#define	D1CRTC_MVP_INBAND_CNTL_INSERT_TIMER 0x6054

#define	D1CRTC_MVP_BLACK_KEYER 0x6058

#define	D1CRTC_TRIGA_CNTL 0x6060

#define	D1CRTC_TRIGA_MANUAL_TRIG 0x6064

#define	D1CRTC_TRIGB_CNTL 0x6068

#define	AVIVO_D1MODE_DESKTOP_HEIGHT 0x652c

#define	D1GRPH_COLOR_MATRIX_TRANSFORMATION_CNTL 0x6380

#define	D1COLOR_MATRIX_COEF_1_1 0x6384

#define	D1COLOR_MATRIX_COEF_1_2 0x6388

#define	D1COLOR_MATRIX_COEF_1_3 0x638c

#define	D1COLOR_MATRIX_COEF_1_4 0x6390

#define	D1COLOR_MATRIX_COEF_2_1 0x6394

#define	D1COLOR_MATRIX_COEF_2_2 0x6398

#define	D1COLOR_MATRIX_COEF_2_3 0x639c

#define	D1COLOR_MATRIX_COEF_2_4 0x63a0

#define	D1COLOR_MATRIX_COEF_3_1 0x63a4

#define	D1COLOR_MATRIX_COEF_3_2 0x63a8

#define	D1COLOR_MATRIX_COEF_3_3 0x63ac

#define	D1COLOR_MATRIX_COEF_3_4 0x63b0

Functions
int	xenos_is_initialized ()

void	xenos_init (int videoMode)

int	xenos_is_overscan ()

Macro Definition Documentation

◆ AVIVO_D1CRTC_V_BLANK_START_END

#define AVIVO_D1CRTC_V_BLANK_START_END 0x6024

Definition at line 54 of file xenos.h.

◆ AVIVO_D1MODE_DATA_FORMAT

#define AVIVO_D1MODE_DATA_FORMAT 0x6528

Definition at line 43 of file xenos.h.

◆ AVIVO_D1MODE_DESKTOP_HEIGHT

#define AVIVO_D1MODE_DESKTOP_HEIGHT 0x652c

Definition at line 60 of file xenos.h.

◆ AVIVO_D1MODE_VIEWPORT_SIZE

#define AVIVO_D1MODE_VIEWPORT_SIZE 0x6584

Definition at line 42 of file xenos.h.

◆ AVIVO_D1MODE_VIEWPORT_START

#define AVIVO_D1MODE_VIEWPORT_START 0x6580

Definition at line 41 of file xenos.h.

◆ AVIVO_D1SCL_SCALER_ENABLE

#define AVIVO_D1SCL_SCALER_ENABLE 0x6590

Definition at line 40 of file xenos.h.

◆ AVIVO_D1SCL_SCALER_TAP_CONTROL

#define AVIVO_D1SCL_SCALER_TAP_CONTROL 0x6594

Definition at line 45 of file xenos.h.

◆ AVIVO_D1SCL_UPDATE

#define AVIVO_D1SCL_UPDATE 0x65cc

Definition at line 39 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_1_1

#define D1COLOR_MATRIX_COEF_1_1 0x6384

Definition at line 62 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_1_2

#define D1COLOR_MATRIX_COEF_1_2 0x6388

Definition at line 63 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_1_3

#define D1COLOR_MATRIX_COEF_1_3 0x638c

Definition at line 64 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_1_4

#define D1COLOR_MATRIX_COEF_1_4 0x6390

Definition at line 65 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_2_1

#define D1COLOR_MATRIX_COEF_2_1 0x6394

Definition at line 66 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_2_2

#define D1COLOR_MATRIX_COEF_2_2 0x6398

Definition at line 67 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_2_3

#define D1COLOR_MATRIX_COEF_2_3 0x639c

Definition at line 68 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_2_4

#define D1COLOR_MATRIX_COEF_2_4 0x63a0

Definition at line 69 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_3_1

#define D1COLOR_MATRIX_COEF_3_1 0x63a4

Definition at line 70 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_3_2

#define D1COLOR_MATRIX_COEF_3_2 0x63a8

Definition at line 71 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_3_3

#define D1COLOR_MATRIX_COEF_3_3 0x63ac

Definition at line 72 of file xenos.h.

◆ D1COLOR_MATRIX_COEF_3_4

#define D1COLOR_MATRIX_COEF_3_4 0x63b0

Definition at line 73 of file xenos.h.

◆ D1CRTC_DOUBLE_BUFFER_CONTROL

#define D1CRTC_DOUBLE_BUFFER_CONTROL 0x60ec

Definition at line 13 of file xenos.h.

◆ D1CRTC_H_BLANK_START_END

#define D1CRTC_H_BLANK_START_END 0x6004

Definition at line 17 of file xenos.h.

◆ D1CRTC_H_SYNC_A

#define D1CRTC_H_SYNC_A 0x6008

Definition at line 19 of file xenos.h.

◆ D1CRTC_H_SYNC_A_CNTL

#define D1CRTC_H_SYNC_A_CNTL 0x600c

Definition at line 21 of file xenos.h.

◆ D1CRTC_H_SYNC_B

#define D1CRTC_H_SYNC_B 0x6010

Definition at line 16 of file xenos.h.

◆ D1CRTC_H_SYNC_B_CNTL

#define D1CRTC_H_SYNC_B_CNTL 0x6014

Definition at line 18 of file xenos.h.

◆ D1CRTC_H_TOTAL

#define D1CRTC_H_TOTAL 0x6000

Definition at line 15 of file xenos.h.

◆ D1CRTC_MVP_BLACK_KEYER

#define D1CRTC_MVP_BLACK_KEYER 0x6058

Definition at line 56 of file xenos.h.

◆ D1CRTC_MVP_CONTROL1

#define D1CRTC_MVP_CONTROL1 0x6038

Definition at line 51 of file xenos.h.

◆ D1CRTC_MVP_CONTROL2

#define D1CRTC_MVP_CONTROL2 0x603c

Definition at line 52 of file xenos.h.

◆ D1CRTC_MVP_FIFO_CONTROL

#define D1CRTC_MVP_FIFO_CONTROL 0x6040

Definition at line 53 of file xenos.h.

◆ D1CRTC_MVP_FIFO_STATUS

#define D1CRTC_MVP_FIFO_STATUS 0x6044

Definition at line 24 of file xenos.h.

◆ D1CRTC_MVP_INBAND_CNTL_CAP

#define D1CRTC_MVP_INBAND_CNTL_CAP 0x604c

Definition at line 22 of file xenos.h.

◆ D1CRTC_MVP_INBAND_CNTL_INSERT

#define D1CRTC_MVP_INBAND_CNTL_INSERT 0x6050

Definition at line 23 of file xenos.h.

◆ D1CRTC_MVP_INBAND_CNTL_INSERT_TIMER

#define D1CRTC_MVP_INBAND_CNTL_INSERT_TIMER 0x6054

Definition at line 55 of file xenos.h.

◆ D1CRTC_MVP_SLAVE_STATUS

#define D1CRTC_MVP_SLAVE_STATUS 0x6048

Definition at line 25 of file xenos.h.

◆ D1CRTC_TRIGA_CNTL

#define D1CRTC_TRIGA_CNTL 0x6060

Definition at line 57 of file xenos.h.

◆ D1CRTC_TRIGA_MANUAL_TRIG

#define D1CRTC_TRIGA_MANUAL_TRIG 0x6064

Definition at line 58 of file xenos.h.

◆ D1CRTC_TRIGB_CNTL

#define D1CRTC_TRIGB_CNTL 0x6068

Definition at line 59 of file xenos.h.

◆ D1CRTC_UPDATE_LOCK

#define D1CRTC_UPDATE_LOCK 0x60e8

Definition at line 11 of file xenos.h.

◆ D1CRTC_V_SYNC_B

#define D1CRTC_V_SYNC_B 0x6030

Definition at line 20 of file xenos.h.

◆ D1CRTC_V_TOTAL

#define D1CRTC_V_TOTAL 0x6020

Definition at line 14 of file xenos.h.

◆ D1GRPH_COLOR_MATRIX_TRANSFORMATION_CNTL

#define D1GRPH_COLOR_MATRIX_TRANSFORMATION_CNTL 0x6380

Definition at line 61 of file xenos.h.

◆ D1GRPH_CONTROL

#define D1GRPH_CONTROL 0x6104

Definition at line 28 of file xenos.h.

◆ D1GRPH_ENABLE

#define D1GRPH_ENABLE 0x6100

Definition at line 37 of file xenos.h.

◆ D1GRPH_FLIP_CONTROL

#define D1GRPH_FLIP_CONTROL 0x6148

Definition at line 44 of file xenos.h.

◆ D1GRPH_LUT_SEL

#define D1GRPH_LUT_SEL 0x6108

Definition at line 29 of file xenos.h.

◆ D1GRPH_PITCH

#define D1GRPH_PITCH 0x6120

Definition at line 27 of file xenos.h.

◆ D1GRPH_PRIMARY_SURFACE_ADDRESS

#define D1GRPH_PRIMARY_SURFACE_ADDRESS 0x6110

Definition at line 36 of file xenos.h.

◆ D1GRPH_SURFACE_OFFSET_X

#define D1GRPH_SURFACE_OFFSET_X 0x6124

Definition at line 30 of file xenos.h.

◆ D1GRPH_SURFACE_OFFSET_Y

#define D1GRPH_SURFACE_OFFSET_Y 0x6128

Definition at line 31 of file xenos.h.

◆ D1GRPH_UPDATE

#define D1GRPH_UPDATE 0x6144

Definition at line 26 of file xenos.h.

◆ D1GRPH_X_END

#define D1GRPH_X_END 0x6134

Definition at line 34 of file xenos.h.

◆ D1GRPH_X_START

#define D1GRPH_X_START 0x612c

Definition at line 32 of file xenos.h.

◆ D1GRPH_Y_END

#define D1GRPH_Y_END 0x6138

Definition at line 35 of file xenos.h.

◆ D1GRPH_Y_START

#define D1GRPH_Y_START 0x6130

Definition at line 33 of file xenos.h.

◆ DC_LUT_AUTOFILL

#define DC_LUT_AUTOFILL 0x64a0

Definition at line 50 of file xenos.h.

◆ DC_LUT_PWL_DATA

#define DC_LUT_PWL_DATA 0x6490

Definition at line 38 of file xenos.h.

◆ DC_LUT_RW_INDEX

#define DC_LUT_RW_INDEX 0x6488

Definition at line 47 of file xenos.h.

◆ DC_LUT_RW_MODE

#define DC_LUT_RW_MODE 0x6484

Definition at line 48 of file xenos.h.

◆ DC_LUT_WRITE_EN_MASK

#define DC_LUT_WRITE_EN_MASK 0x649C

Definition at line 49 of file xenos.h.

◆ DC_LUTA_CONTROL

#define DC_LUTA_CONTROL 0x64C0

Definition at line 46 of file xenos.h.

◆ DCP_LB_DATA_GAP_BETWEEN_CHUNK

#define DCP_LB_DATA_GAP_BETWEEN_CHUNK 0x6cbc

Definition at line 12 of file xenos.h.

Function Documentation

◆ xenos_init()

void xenos_init ( int videoMode )

Definition at line 599 of file xenos.c.

◆ xenos_is_initialized()

int xenos_is_initialized ( )

Definition at line 645 of file xenos.c.

◆ xenos_is_overscan()

int xenos_is_overscan ( )

Definition at line 635 of file xenos.c.
