usbchap9.h File Reference

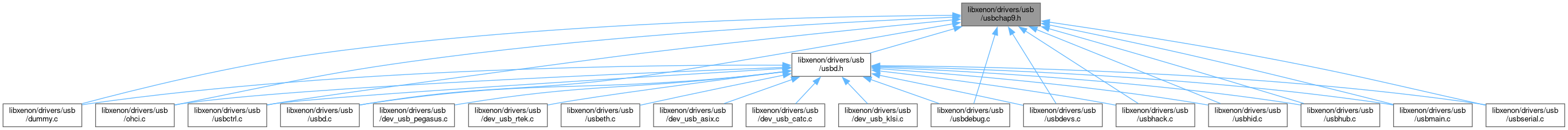

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  usb_device_descr_s

struct  usb_endpoint_descr_s

struct  usb_config_descr_s

struct  usb_interface_descr_s

struct  usb_string_descr_s

struct  usb_power_descr_s

struct  usb_common_descr_s

struct  usb_device_status_s

struct  usb_hub_descr_s

struct  usb_hub_status_s

struct  usb_port_status_s

struct  usb_device_request_s

struct  usb_hid_descr_s


Macros

#define MAXIMUM_USB_STRING_LENGTH   255

#define USB_GETSTATUS_SELF_POWERED   0x01

#define USB_GETSTATUS_REMOTE_WAKEUP_ENABLED   0x02

#define USB_DEVICE_DESCRIPTOR_TYPE   0x01

#define USB_CONFIGURATION_DESCRIPTOR_TYPE   0x02

#define USB_STRING_DESCRIPTOR_TYPE   0x03

#define USB_INTERFACE_DESCRIPTOR_TYPE   0x04

#define USB_ENDPOINT_DESCRIPTOR_TYPE   0x05

#define USB_POWER_DESCRIPTOR_TYPE   0x06

#define USB_HID_DESCRIPTOR_TYPE   0x21

#define USB_HUB_DESCRIPTOR_TYPE   0x29

#define USB_DESCRIPTOR_TYPEINDEX(d, i)   ((uint16_t)((uint16_t)(d)<<8 | (i)))

#define USB_ENDPOINT_TYPE_MASK   0x03

#define USB_ENDPOINT_TYPE_CONTROL   0x00

#define USB_ENDPOINT_TYPE_ISOCHRONOUS   0x01

#define USB_ENDPOINT_TYPE_BULK   0x02

#define USB_ENDPOINT_TYPE_INTERRUPT   0x03

#define USB_CONFIG_POWERED_MASK   0xc0

#define USB_CONFIG_BUS_POWERED   0x80

#define USB_CONFIG_SELF_POWERED   0x40

#define USB_CONFIG_REMOTE_WAKEUP   0x20

#define USB_ENDPOINT_DIRECTION_MASK   0x80

#define USB_ENDPOINT_DIRECTION_IN   0x80 /* bit set means IN */

#define USB_ENDPOINT_DIR_OUT(addr)   (!((addr) & USB_ENDPOINT_DIRECTION_MASK))

#define USB_ENDPOINT_DIR_IN(addr)   ((addr) & USB_ENDPOINT_DIRECTION_MASK)

#define USB_ENDPOINT_ADDRESS(addr)   ((addr) & 0x0F)

#define USB_REQUEST_GET_STATUS   0x00

#define USB_REQUEST_CLEAR_FEATURE   0x01

#define USB_REQUEST_SET_FEATURE   0x03

#define USB_REQUEST_SET_ADDRESS   0x05

#define USB_REQUEST_GET_DESCRIPTOR   0x06

#define USB_REQUEST_SET_DESCRIPTOR   0x07

#define USB_REQUEST_GET_CONFIGURATION   0x08

#define USB_REQUEST_SET_CONFIGURATION   0x09

#define USB_REQUEST_GET_INTERFACE   0x0A

#define USB_REQUEST_SET_INTERFACE   0x0B

#define USB_REQUEST_SYNC_FRAME   0x0C

#define USB_DEVICE_CLASS_RESERVED   0x00

#define USB_DEVICE_CLASS_AUDIO   0x01

#define USB_DEVICE_CLASS_COMMUNICATIONS   0x02

#define USB_DEVICE_CLASS_HUMAN_INTERFACE   0x03

#define USB_DEVICE_CLASS_MONITOR   0x04

#define USB_DEVICE_CLASS_PHYSICAL_INTERFACE   0x05

#define USB_DEVICE_CLASS_POWER   0x06

#define USB_DEVICE_CLASS_PRINTER   0x07

#define USB_DEVICE_CLASS_STORAGE   0x08

#define USB_DEVICE_CLASS_HUB   0x09

#define USB_DEVICE_CLASS_VENDOR_SPECIFIC   0xFF

#define USB_FEATURE_ENDPOINT_STALL   0x0000

#define USB_FEATURE_REMOTE_WAKEUP   0x0001

#define USB_FEATURE_POWER_D0   0x0002

#define USB_FEATURE_POWER_D1   0x0003

#define USB_FEATURE_POWER_D2   0x0004

#define USB_FEATURE_POWER_D3   0x0005

#define USBWORD(x)   ((x) & 0xFF),(((x) >> 8) & 0xFF)

#define USB_CONTROL_ENDPOINT_MIN_SIZE   8

#define CONFIG_BUS_POWERED   0x80

#define CONFIG_SELF_POWERED   0x40

#define CONFIG_REMOTE_WAKEUP   0x20

#define USB_INTERFACE_CLASS_HUB   0x09

#define USB_SUPPORT_D0_COMMAND   0x01

#define USB_SUPPORT_D1_COMMAND   0x02

#define USB_SUPPORT_D2_COMMAND   0x04

#define USB_SUPPORT_D3_COMMAND   0x08

#define USB_SUPPORT_D1_WAKEUP   0x10

#define USB_SUPPORT_D2_WAKEUP   0x20

#define USB_HUB_DESCR_SIZE   8

#define USB_HUBCHAR_PWR_GANGED   0

#define USB_HUBCHAR_PWR_IND   1

#define USB_HUBCHAR_PWR_NONE   2

#define USB_PORT_STATUS_CONNECT   0x0001

#define USB_PORT_STATUS_ENABLED   0x0002

#define USB_PORT_STATUS_SUSPEND   0x0004

#define USB_PORT_STATUS_OVERCUR   0x0008

#define USB_PORT_STATUS_RESET   0x0010

#define USB_PORT_STATUS_POWER   0x0100

#define USB_PORT_STATUS_LOWSPD   0x0200

#define USB_HUBREQ_GET_STATUS   0

#define USB_HUBREQ_CLEAR_FEATURE   1

#define USB_HUBREQ_GET_STATE   2

#define USB_HUBREQ_SET_FEATURE   3

#define USB_HUBREQ_GET_DESCRIPTOR   6

#define USB_HUBREQ_SET_DESCRIPTOR   7

#define USB_HUB_FEATURE_C_LOCAL_POWER   0

#define USB_HUB_FEATURE_C_OVER_CURRENT   1

#define USB_PORT_FEATURE_CONNECTION   0

#define USB_PORT_FEATURE_ENABLE   1

#define USB_PORT_FEATURE_SUSPEND   2

#define USB_PORT_FEATURE_OVER_CURRENT   3

#define USB_PORT_FEATURE_RESET   4

#define USB_PORT_FEATURE_POWER   8

#define USB_PORT_FEATURE_LOW_SPEED   9

#define USB_PORT_FEATURE_C_PORT_CONNECTION   16

#define USB_PORT_FEATURE_C_PORT_ENABLE   17

#define USB_PORT_FEATURE_C_PORT_SUSPEND   18

#define USB_PORT_FEATURE_C_PORT_OVER_CURRENT   19

#define USB_PORT_FEATURE_C_PORT_RESET   20

#define GETUSBFIELD(s, f)   (((s)->f##Low) | ((s)->f##High << 8))

#define PUTUSBFIELD(s, f, v)

#define USBREQ_DIR_IN   0x80

#define USBREQ_DIR_OUT   0x00

#define USBREQ_TYPE_STD   0x00

#define USBREQ_TYPE_CLASS   0x20

#define USBREQ_TYPE_VENDOR   0x40

#define USBREQ_TYPE_RSVD   0x60

#define USBREQ_REC_DEVICE   0x00

#define USBREQ_REC_INTERFACE   0x01

#define USBREQ_REC_ENDPOINT   0x02

#define USBREQ_REC_OTHER   0x03

#define REQCODE(req, dir, type, rec)   (((req) << 8) | (dir) | (type) | (rec))

#define REQSW(req, attr)   (((req) << 8) | (attr))


Typedefs

typedef struct usb_device_descr_s usb_device_descr_t

typedef struct usb_endpoint_descr_s usb_endpoint_descr_t

typedef struct usb_config_descr_s usb_config_descr_t

typedef struct usb_interface_descr_s usb_interface_descr_t

typedef struct usb_string_descr_s usb_string_descr_t

typedef struct usb_power_descr_s usb_power_descr_t

typedef struct usb_common_descr_s usb_common_descr_t

typedef struct usb_device_status_s usb_device_status_t

typedef struct usb_hub_descr_s usb_hub_descr_t

typedef struct usb_hub_status_s usb_hub_status_t

typedef struct usb_port_status_s usb_port_status_t

typedef struct usb_device_request_s usb_device_request_t

typedef struct usb_hid_descr_s usb_hid_descr_t


Macro Definition Documentation

◆ CONFIG_BUS_POWERED

#define CONFIG_BUS_POWERED   0x80

Definition at line 207 of file usbchap9.h.

◆ CONFIG_REMOTE_WAKEUP

#define CONFIG_REMOTE_WAKEUP   0x20

Definition at line 209 of file usbchap9.h.

◆ CONFIG_SELF_POWERED

#define CONFIG_SELF_POWERED   0x40

Definition at line 208 of file usbchap9.h.

◆ GETUSBFIELD

#define GETUSBFIELD (   s,
  f
)    (((s)->f##Low) | ((s)->f##High << 8))

Definition at line 347 of file usbchap9.h.

◆ MAXIMUM_USB_STRING_LENGTH

#define MAXIMUM_USB_STRING_LENGTH   255

Definition at line 53 of file usbchap9.h.

◆ PUTUSBFIELD

#define PUTUSBFIELD (   s,
  f,
  v
)
Value:
(s)->f##Low = (v & 0xFF); \
(s)->f##High = ((v)>>8 & 0xFF)

Definition at line 348 of file usbchap9.h.

◆ REQCODE

#define REQCODE (   req,
  dir,
  type,
  rec
)    (((req) << 8) | (dir) | (type) | (rec))

Definition at line 373 of file usbchap9.h.

◆ REQSW

#define REQSW (   req,
  attr
)    (((req) << 8) | (attr))

Definition at line 374 of file usbchap9.h.

◆ USB_CONFIG_BUS_POWERED

#define USB_CONFIG_BUS_POWERED   0x80

Definition at line 92 of file usbchap9.h.

◆ USB_CONFIG_POWERED_MASK

#define USB_CONFIG_POWERED_MASK   0xc0

Definition at line 90 of file usbchap9.h.

◆ USB_CONFIG_REMOTE_WAKEUP

#define USB_CONFIG_REMOTE_WAKEUP   0x20

Definition at line 94 of file usbchap9.h.

◆ USB_CONFIG_SELF_POWERED

#define USB_CONFIG_SELF_POWERED   0x40

Definition at line 93 of file usbchap9.h.

◆ USB_CONFIGURATION_DESCRIPTOR_TYPE

#define USB_CONFIGURATION_DESCRIPTOR_TYPE   0x02

Definition at line 63 of file usbchap9.h.

◆ USB_CONTROL_ENDPOINT_MIN_SIZE

#define USB_CONTROL_ENDPOINT_MIN_SIZE   8

Definition at line 174 of file usbchap9.h.

◆ USB_DESCRIPTOR_TYPEINDEX

#define USB_DESCRIPTOR_TYPEINDEX (   d,
  i
)    ((uint16_t)((uint16_t)(d)<<8 | (i)))

Definition at line 71 of file usbchap9.h.

◆ USB_DEVICE_CLASS_AUDIO

#define USB_DEVICE_CLASS_AUDIO   0x01

Definition at line 144 of file usbchap9.h.

◆ USB_DEVICE_CLASS_COMMUNICATIONS

#define USB_DEVICE_CLASS_COMMUNICATIONS   0x02

Definition at line 145 of file usbchap9.h.

◆ USB_DEVICE_CLASS_HUB

#define USB_DEVICE_CLASS_HUB   0x09

Definition at line 152 of file usbchap9.h.

◆ USB_DEVICE_CLASS_HUMAN_INTERFACE

#define USB_DEVICE_CLASS_HUMAN_INTERFACE   0x03

Definition at line 146 of file usbchap9.h.

◆ USB_DEVICE_CLASS_MONITOR

#define USB_DEVICE_CLASS_MONITOR   0x04

Definition at line 147 of file usbchap9.h.

◆ USB_DEVICE_CLASS_PHYSICAL_INTERFACE

#define USB_DEVICE_CLASS_PHYSICAL_INTERFACE   0x05

Definition at line 148 of file usbchap9.h.

◆ USB_DEVICE_CLASS_POWER

#define USB_DEVICE_CLASS_POWER   0x06

Definition at line 149 of file usbchap9.h.

◆ USB_DEVICE_CLASS_PRINTER

#define USB_DEVICE_CLASS_PRINTER   0x07

Definition at line 150 of file usbchap9.h.

◆ USB_DEVICE_CLASS_RESERVED

#define USB_DEVICE_CLASS_RESERVED   0x00

Definition at line 143 of file usbchap9.h.

◆ USB_DEVICE_CLASS_STORAGE

#define USB_DEVICE_CLASS_STORAGE   0x08

Definition at line 151 of file usbchap9.h.

◆ USB_DEVICE_CLASS_VENDOR_SPECIFIC

#define USB_DEVICE_CLASS_VENDOR_SPECIFIC   0xFF

Definition at line 153 of file usbchap9.h.

◆ USB_DEVICE_DESCRIPTOR_TYPE

#define USB_DEVICE_DESCRIPTOR_TYPE   0x01

Definition at line 62 of file usbchap9.h.

◆ USB_ENDPOINT_ADDRESS

#define USB_ENDPOINT_ADDRESS (   addr)    ((addr) & 0x0F)

Definition at line 110 of file usbchap9.h.

◆ USB_ENDPOINT_DESCRIPTOR_TYPE

#define USB_ENDPOINT_DESCRIPTOR_TYPE   0x05

Definition at line 66 of file usbchap9.h.

◆ USB_ENDPOINT_DIR_IN

#define USB_ENDPOINT_DIR_IN (   addr)    ((addr) & USB_ENDPOINT_DIRECTION_MASK)

Definition at line 108 of file usbchap9.h.

◆ USB_ENDPOINT_DIR_OUT

#define USB_ENDPOINT_DIR_OUT (   addr)    (!((addr) & USB_ENDPOINT_DIRECTION_MASK))

Definition at line 107 of file usbchap9.h.

◆ USB_ENDPOINT_DIRECTION_IN

#define USB_ENDPOINT_DIRECTION_IN   0x80 /* bit set means IN */

Definition at line 101 of file usbchap9.h.

◆ USB_ENDPOINT_DIRECTION_MASK

#define USB_ENDPOINT_DIRECTION_MASK   0x80

Definition at line 100 of file usbchap9.h.

◆ USB_ENDPOINT_TYPE_BULK

#define USB_ENDPOINT_TYPE_BULK   0x02

Definition at line 82 of file usbchap9.h.

◆ USB_ENDPOINT_TYPE_CONTROL

#define USB_ENDPOINT_TYPE_CONTROL   0x00

Definition at line 80 of file usbchap9.h.

◆ USB_ENDPOINT_TYPE_INTERRUPT

#define USB_ENDPOINT_TYPE_INTERRUPT   0x03

Definition at line 83 of file usbchap9.h.

◆ USB_ENDPOINT_TYPE_ISOCHRONOUS

#define USB_ENDPOINT_TYPE_ISOCHRONOUS   0x01

Definition at line 81 of file usbchap9.h.

◆ USB_ENDPOINT_TYPE_MASK

#define USB_ENDPOINT_TYPE_MASK   0x03

Definition at line 78 of file usbchap9.h.

◆ USB_FEATURE_ENDPOINT_STALL

#define USB_FEATURE_ENDPOINT_STALL   0x0000

Definition at line 159 of file usbchap9.h.

◆ USB_FEATURE_POWER_D0

#define USB_FEATURE_POWER_D0   0x0002

Definition at line 161 of file usbchap9.h.

◆ USB_FEATURE_POWER_D1

#define USB_FEATURE_POWER_D1   0x0003

Definition at line 162 of file usbchap9.h.

◆ USB_FEATURE_POWER_D2

#define USB_FEATURE_POWER_D2   0x0004

Definition at line 163 of file usbchap9.h.

◆ USB_FEATURE_POWER_D3

#define USB_FEATURE_POWER_D3   0x0005

Definition at line 164 of file usbchap9.h.

◆ USB_FEATURE_REMOTE_WAKEUP

#define USB_FEATURE_REMOTE_WAKEUP   0x0001

Definition at line 160 of file usbchap9.h.

◆ USB_GETSTATUS_REMOTE_WAKEUP_ENABLED

#define USB_GETSTATUS_REMOTE_WAKEUP_ENABLED   0x02

Definition at line 59 of file usbchap9.h.

◆ USB_GETSTATUS_SELF_POWERED

#define USB_GETSTATUS_SELF_POWERED   0x01

Definition at line 58 of file usbchap9.h.

◆ USB_HID_DESCRIPTOR_TYPE

#define USB_HID_DESCRIPTOR_TYPE   0x21

Definition at line 68 of file usbchap9.h.

◆ USB_HUB_DESCR_SIZE

#define USB_HUB_DESCR_SIZE   8

Definition at line 287 of file usbchap9.h.

◆ USB_HUB_DESCRIPTOR_TYPE

#define USB_HUB_DESCRIPTOR_TYPE   0x29

Definition at line 69 of file usbchap9.h.

◆ USB_HUB_FEATURE_C_LOCAL_POWER

#define USB_HUB_FEATURE_C_LOCAL_POWER   0

Definition at line 330 of file usbchap9.h.

◆ USB_HUB_FEATURE_C_OVER_CURRENT

#define USB_HUB_FEATURE_C_OVER_CURRENT   1

Definition at line 331 of file usbchap9.h.

◆ USB_HUBCHAR_PWR_GANGED

#define USB_HUBCHAR_PWR_GANGED   0

Definition at line 300 of file usbchap9.h.

◆ USB_HUBCHAR_PWR_IND

#define USB_HUBCHAR_PWR_IND   1

Definition at line 301 of file usbchap9.h.

◆ USB_HUBCHAR_PWR_NONE

#define USB_HUBCHAR_PWR_NONE   2

Definition at line 302 of file usbchap9.h.

◆ USB_HUBREQ_CLEAR_FEATURE

#define USB_HUBREQ_CLEAR_FEATURE   1

Definition at line 324 of file usbchap9.h.

◆ USB_HUBREQ_GET_DESCRIPTOR

#define USB_HUBREQ_GET_DESCRIPTOR   6

Definition at line 327 of file usbchap9.h.

◆ USB_HUBREQ_GET_STATE

#define USB_HUBREQ_GET_STATE   2

Definition at line 325 of file usbchap9.h.

◆ USB_HUBREQ_GET_STATUS

#define USB_HUBREQ_GET_STATUS   0

Definition at line 323 of file usbchap9.h.

◆ USB_HUBREQ_SET_DESCRIPTOR

#define USB_HUBREQ_SET_DESCRIPTOR   7

Definition at line 328 of file usbchap9.h.

◆ USB_HUBREQ_SET_FEATURE

#define USB_HUBREQ_SET_FEATURE   3

Definition at line 326 of file usbchap9.h.

◆ USB_INTERFACE_CLASS_HUB

#define USB_INTERFACE_CLASS_HUB   0x09

Definition at line 222 of file usbchap9.h.

◆ USB_INTERFACE_DESCRIPTOR_TYPE

#define USB_INTERFACE_DESCRIPTOR_TYPE   0x04

Definition at line 65 of file usbchap9.h.

◆ USB_PORT_FEATURE_C_PORT_CONNECTION

#define USB_PORT_FEATURE_C_PORT_CONNECTION   16

Definition at line 340 of file usbchap9.h.

◆ USB_PORT_FEATURE_C_PORT_ENABLE

#define USB_PORT_FEATURE_C_PORT_ENABLE   17

Definition at line 341 of file usbchap9.h.

◆ USB_PORT_FEATURE_C_PORT_OVER_CURRENT

#define USB_PORT_FEATURE_C_PORT_OVER_CURRENT   19

Definition at line 343 of file usbchap9.h.

◆ USB_PORT_FEATURE_C_PORT_RESET

#define USB_PORT_FEATURE_C_PORT_RESET   20

Definition at line 344 of file usbchap9.h.

◆ USB_PORT_FEATURE_C_PORT_SUSPEND

#define USB_PORT_FEATURE_C_PORT_SUSPEND   18

Definition at line 342 of file usbchap9.h.

◆ USB_PORT_FEATURE_CONNECTION

#define USB_PORT_FEATURE_CONNECTION   0

Definition at line 333 of file usbchap9.h.

◆ USB_PORT_FEATURE_ENABLE

#define USB_PORT_FEATURE_ENABLE   1

Definition at line 334 of file usbchap9.h.

◆ USB_PORT_FEATURE_LOW_SPEED

#define USB_PORT_FEATURE_LOW_SPEED   9

Definition at line 339 of file usbchap9.h.

◆ USB_PORT_FEATURE_OVER_CURRENT

#define USB_PORT_FEATURE_OVER_CURRENT   3

Definition at line 336 of file usbchap9.h.

◆ USB_PORT_FEATURE_POWER

#define USB_PORT_FEATURE_POWER   8

Definition at line 338 of file usbchap9.h.

◆ USB_PORT_FEATURE_RESET

#define USB_PORT_FEATURE_RESET   4

Definition at line 337 of file usbchap9.h.

◆ USB_PORT_FEATURE_SUSPEND

#define USB_PORT_FEATURE_SUSPEND   2

Definition at line 335 of file usbchap9.h.

◆ USB_PORT_STATUS_CONNECT

#define USB_PORT_STATUS_CONNECT   0x0001

Definition at line 309 of file usbchap9.h.

◆ USB_PORT_STATUS_ENABLED

#define USB_PORT_STATUS_ENABLED   0x0002

Definition at line 310 of file usbchap9.h.

◆ USB_PORT_STATUS_LOWSPD

#define USB_PORT_STATUS_LOWSPD   0x0200

Definition at line 315 of file usbchap9.h.

◆ USB_PORT_STATUS_OVERCUR

#define USB_PORT_STATUS_OVERCUR   0x0008

Definition at line 312 of file usbchap9.h.

◆ USB_PORT_STATUS_POWER

#define USB_PORT_STATUS_POWER   0x0100

Definition at line 314 of file usbchap9.h.

◆ USB_PORT_STATUS_RESET

#define USB_PORT_STATUS_RESET   0x0010

Definition at line 313 of file usbchap9.h.

◆ USB_PORT_STATUS_SUSPEND

#define USB_PORT_STATUS_SUSPEND   0x0004

Definition at line 311 of file usbchap9.h.

◆ USB_POWER_DESCRIPTOR_TYPE

#define USB_POWER_DESCRIPTOR_TYPE   0x06

Definition at line 67 of file usbchap9.h.

◆ USB_REQUEST_CLEAR_FEATURE

#define USB_REQUEST_CLEAR_FEATURE   0x01

Definition at line 124 of file usbchap9.h.

◆ USB_REQUEST_GET_CONFIGURATION

#define USB_REQUEST_GET_CONFIGURATION   0x08

Definition at line 131 of file usbchap9.h.

◆ USB_REQUEST_GET_DESCRIPTOR

#define USB_REQUEST_GET_DESCRIPTOR   0x06

Definition at line 129 of file usbchap9.h.

◆ USB_REQUEST_GET_INTERFACE

#define USB_REQUEST_GET_INTERFACE   0x0A

Definition at line 133 of file usbchap9.h.

◆ USB_REQUEST_GET_STATUS

#define USB_REQUEST_GET_STATUS   0x00

Definition at line 123 of file usbchap9.h.

◆ USB_REQUEST_SET_ADDRESS

#define USB_REQUEST_SET_ADDRESS   0x05

Definition at line 128 of file usbchap9.h.

◆ USB_REQUEST_SET_CONFIGURATION

#define USB_REQUEST_SET_CONFIGURATION   0x09

Definition at line 132 of file usbchap9.h.

◆ USB_REQUEST_SET_DESCRIPTOR

#define USB_REQUEST_SET_DESCRIPTOR   0x07

Definition at line 130 of file usbchap9.h.

◆ USB_REQUEST_SET_FEATURE

#define USB_REQUEST_SET_FEATURE   0x03

Definition at line 126 of file usbchap9.h.

◆ USB_REQUEST_SET_INTERFACE

#define USB_REQUEST_SET_INTERFACE   0x0B

Definition at line 134 of file usbchap9.h.

◆ USB_REQUEST_SYNC_FRAME

#define USB_REQUEST_SYNC_FRAME   0x0C

Definition at line 135 of file usbchap9.h.

◆ USB_STRING_DESCRIPTOR_TYPE

#define USB_STRING_DESCRIPTOR_TYPE   0x03

Definition at line 64 of file usbchap9.h.

◆ USB_SUPPORT_D0_COMMAND

#define USB_SUPPORT_D0_COMMAND   0x01

Definition at line 247 of file usbchap9.h.

◆ USB_SUPPORT_D1_COMMAND

#define USB_SUPPORT_D1_COMMAND   0x02

Definition at line 248 of file usbchap9.h.

◆ USB_SUPPORT_D1_WAKEUP

#define USB_SUPPORT_D1_WAKEUP   0x10

Definition at line 252 of file usbchap9.h.

◆ USB_SUPPORT_D2_COMMAND

#define USB_SUPPORT_D2_COMMAND   0x04

Definition at line 249 of file usbchap9.h.

◆ USB_SUPPORT_D2_WAKEUP

#define USB_SUPPORT_D2_WAKEUP   0x20

Definition at line 253 of file usbchap9.h.

◆ USB_SUPPORT_D3_COMMAND

#define USB_SUPPORT_D3_COMMAND   0x08

Definition at line 250 of file usbchap9.h.

◆ USBREQ_DIR_IN

#define USBREQ_DIR_IN   0x80

Definition at line 362 of file usbchap9.h.

◆ USBREQ_DIR_OUT

#define USBREQ_DIR_OUT   0x00

Definition at line 363 of file usbchap9.h.

◆ USBREQ_REC_DEVICE

#define USBREQ_REC_DEVICE   0x00

Definition at line 368 of file usbchap9.h.

◆ USBREQ_REC_ENDPOINT

#define USBREQ_REC_ENDPOINT   0x02

Definition at line 370 of file usbchap9.h.

◆ USBREQ_REC_INTERFACE

#define USBREQ_REC_INTERFACE   0x01

Definition at line 369 of file usbchap9.h.

◆ USBREQ_REC_OTHER

#define USBREQ_REC_OTHER   0x03

Definition at line 371 of file usbchap9.h.

◆ USBREQ_TYPE_CLASS

#define USBREQ_TYPE_CLASS   0x20

Definition at line 365 of file usbchap9.h.

◆ USBREQ_TYPE_RSVD

#define USBREQ_TYPE_RSVD   0x60

Definition at line 367 of file usbchap9.h.

◆ USBREQ_TYPE_STD

#define USBREQ_TYPE_STD   0x00

Definition at line 364 of file usbchap9.h.

◆ USBREQ_TYPE_VENDOR

#define USBREQ_TYPE_VENDOR   0x40

Definition at line 366 of file usbchap9.h.

◆ USBWORD

#define USBWORD (   x)    ((x) & 0xFF),(((x) >> 8) & 0xFF)

Definition at line 172 of file usbchap9.h.

Typedef Documentation

◆ usb_common_descr_t

typedef struct usb_common_descr_s usb_common_descr_t

◆ usb_config_descr_t

typedef struct usb_config_descr_s usb_config_descr_t

◆ usb_device_descr_t

typedef struct usb_device_descr_s usb_device_descr_t

◆ usb_device_request_t

typedef struct usb_device_request_s usb_device_request_t

◆ usb_device_status_t

typedef struct usb_device_status_s usb_device_status_t

◆ usb_endpoint_descr_t

typedef struct usb_endpoint_descr_s usb_endpoint_descr_t

◆ usb_hid_descr_t

typedef struct usb_hid_descr_s usb_hid_descr_t

◆ usb_hub_descr_t

typedef struct usb_hub_descr_s usb_hub_descr_t

◆ usb_hub_status_t

typedef struct usb_hub_status_s usb_hub_status_t

◆ usb_interface_descr_t

typedef struct usb_interface_descr_s usb_interface_descr_t

◆ usb_port_status_t

typedef struct usb_port_status_s usb_port_status_t

◆ usb_power_descr_t

typedef struct usb_power_descr_s usb_power_descr_t

◆ usb_string_descr_t

typedef struct usb_string_descr_s usb_string_descr_t
Generated by doxygen 1.9.5
