netif.c File Reference

#include "lwip/opt.h"
#include "lwip/def.h"
#include "lwip/ip_addr.h"
#include "lwip/netif.h"
#include "lwip/tcp_impl.h"
#include "lwip/snmp.h"
#include "lwip/igmp.h"
#include "netif/etharp.h"
#include "lwip/stats.h"

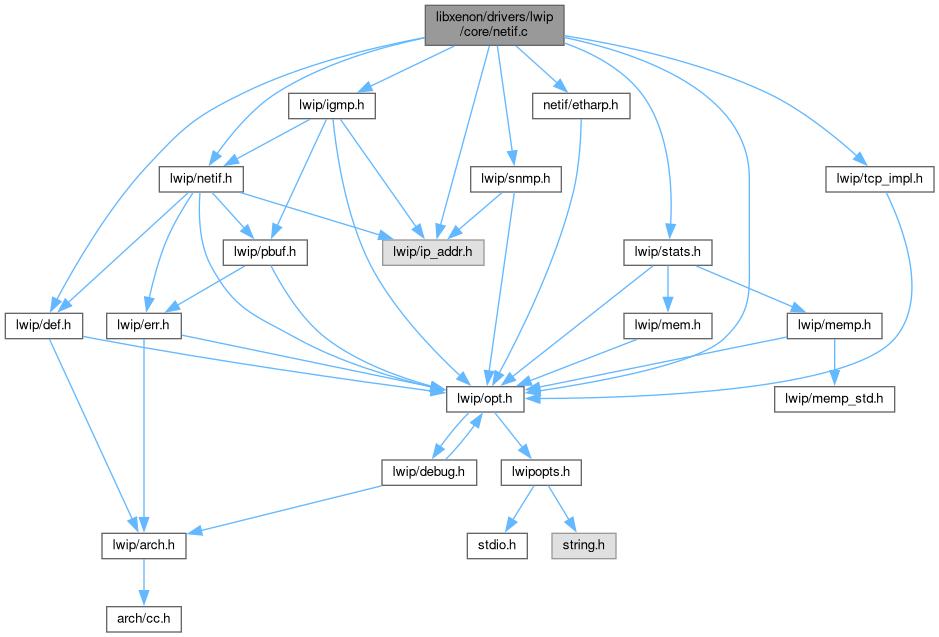

Include dependency graph for netif.c:

Go to the source code of this file.

Macros
#define	NETIF_STATUS_CALLBACK(n)
#define	NETIF_LINK_CALLBACK(n)

Functions
void	netif_init (void)
struct netif *	netif_add (struct netif *netif, ip_addr_t *ipaddr, ip_addr_t *netmask, ip_addr_t *gw, void *state, netif_init_fn init, netif_input_fn input)
void	netif_set_addr (struct netif *netif, ip_addr_t *ipaddr, ip_addr_t *netmask, ip_addr_t *gw)
void	netif_remove (struct netif *netif)
struct netif *	netif_find (char *name)
void	netif_set_ipaddr (struct netif *netif, ip_addr_t *ipaddr)
void	netif_set_gw (struct netif *netif, ip_addr_t *gw)
void	netif_set_netmask (struct netif *netif, ip_addr_t *netmask)
void	netif_set_default (struct netif *netif)
void	netif_set_up (struct netif *netif)
void	netif_set_down (struct netif *netif)
void	netif_set_link_up (struct netif *netif)
void	netif_set_link_down (struct netif *netif)

Variables
struct netif *	netif_list
struct netif *	netif_default

Detailed Description

lwIP network interface abstraction

Definition in file netif.c.

Macro Definition Documentation

NETIF_LINK_CALLBACK

#define NETIF_LINK_CALLBACK

(

n

)

Definition at line 72 of file netif.c.

NETIF_STATUS_CALLBACK

#define NETIF_STATUS_CALLBACK

(

n

)

Definition at line 66 of file netif.c.

Function Documentation

netif_add()

struct netif * netif_add	(	struct netif *	netif,
		ip_addr_t *	ipaddr,
		ip_addr_t *	netmask,
		ip_addr_t *	gw,
		void *	state,
		netif_init_fn	init,
		netif_input_fn	input
	)

Add a network interface to the list of lwIP netifs.

Parameters

netif	a pre-allocated netif structure
ipaddr	IP address for the new netif
netmask	network mask for the new netif
gw	default gateway IP address for the new netif
state	opaque data passed to the new netif
init	callback function that initializes the interface
input	callback function that is called to pass ingress packets up in the protocol layer stack.

Returns

netif, or NULL if failed.

Definition at line 139 of file netif.c.

netif_find()

struct netif * netif_find

(

char *

name

)

Find a network interface by searching for its name

Parameters

name	the name of the netif (like netif->name) plus concatenated number in ascii representation (e.g. 'en0')

Definition at line 290 of file netif.c.

netif_init()

void netif_init

(

void

)

Definition at line 106 of file netif.c.

netif_remove()

void netif_remove

(

struct netif *

netif

)

Remove a network interface from the list of lwIP netifs.

Parameters

netif

the network interface to remove

Definition at line 235 of file netif.c.

netif_set_addr()

void netif_set_addr	(	struct netif *	netif,
		ip_addr_t *	ipaddr,
		ip_addr_t *	netmask,
		ip_addr_t *	gw
	)

Change IP address configuration for a network interface (including netmask and default gateway).

Parameters

netif	the network interface to change
ipaddr	the new IP address
netmask	the new netmask
gw	the new default gateway

Definition at line 221 of file netif.c.

netif_set_default()

void netif_set_default

(

struct netif *

netif

)

Set a network interface as the default network interface (used to output all packets for which no specific route is found)

Parameters

netif

the default network interface

Definition at line 430 of file netif.c.

netif_set_down()

void netif_set_down

(

struct netif *

netif

)

Bring an interface down, disabling any traffic processing.

Note

: Enabling DHCP on a down interface will make it come up once configured.

See also

dhcp_start()

Definition at line 490 of file netif.c.

netif_set_gw()

void netif_set_gw	(	struct netif *	netif,
		ip_addr_t *	gw
	)

Change the default gateway for a network interface

Parameters

netif	the network interface to change
gw	the new default gateway

Note

call netif_set_addr() if you also want to change ip address and netmask

Definition at line 388 of file netif.c.

netif_set_ipaddr()

void netif_set_ipaddr	(	struct netif *	netif,
		ip_addr_t *	ipaddr
	)

Change the IP address of a network interface

Parameters

netif	the network interface to change
ipaddr	the new IP address

Note

call netif_set_addr() if you also want to change netmask and default gateway

Definition at line 323 of file netif.c.

netif_set_link_down()

void netif_set_link_down

(

struct netif *

netif

)

Called by a driver when its link goes down

Definition at line 574 of file netif.c.

netif_set_link_up()

void netif_set_link_up

(

struct netif *

netif

)

Called by a driver when its link goes up

Definition at line 535 of file netif.c.

netif_set_netmask()

void netif_set_netmask	(	struct netif *	netif,
		ip_addr_t *	netmask
	)

Change the netmask of a network interface

Parameters

netif	the network interface to change
netmask	the new netmask

Note

call netif_set_addr() if you also want to change ip address and default gateway

Definition at line 409 of file netif.c.

netif_set_up()

void netif_set_up

(

struct netif *

netif

)

Bring an interface up, available for processing traffic.

Note

: Enabling DHCP on a down interface will make it come up once configured.

See also

dhcp_start()

Definition at line 453 of file netif.c.

Variable Documentation

netif_default

struct netif* netif_default

The default network interface.

Definition at line 76 of file netif.c.

netif_list

struct netif* netif_list

The list of network interfaces.

Definition at line 75 of file netif.c.
